RAM Double Ball Yoke Clamp Mount With Garmin Mounting Hardware
R1,739.00
SKU
RAMB121G1U
Ball and sockets system
Universal mounting solution
For both ram and non-ram designed products
Description

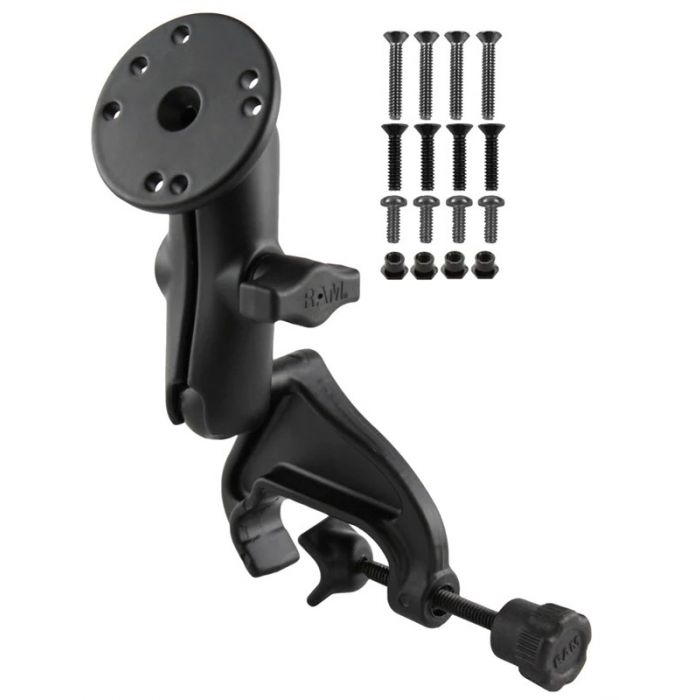

The RAM Double Ball Yoke Clamp Mount With Garmin Mounting Hardware consists of the 1" dia. ball and socket system with RAM Universal 2.5" diameter plate and connection hardware. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the 2.5" Plate will connect to a large variety of third party cradles and mounts. The base fits a rail diameter from 5/8" to a maximum of 1 1/4". The 1" rubber ball is at a right angle to the plane of the mount so when connected to a rail,
the ball sits parallel to the rail. To mount the base, simply place the yoke clamps around the rail and then screw the large knob at the end of the threaded rod. The hand tightened clamp makes this the perfect mounting system for rental planes and unusual shaped motorbike rails. The rail does not need to be perfectly round to mount this base.
Features
- Ball and sockets system
- Universal mounting solution
- For both ram and non-ram designed products
- Base fits a rail diameter from 5/8" to 1 1/4"
- Features a hamd tightened clamp
- For rental planes and unusual shaped motorbike rails
Specifications
| Clamp Range | .625" - 1.25" |
| Socket To Socket Length | 3" |
| Hole Pattern | |
| 4-Hole Amps | 1.181" X 1.496" |
| 3-Hole 120-Degree | 1.812" Diameter |
| Ball Size | B Size (1") |
| Weight Capacity | |
| Standard Use | 2 Lbs |
| Heavy-Duty Use | 1 Lb |
| Materials | Marine-Grade Aluminum |
Hardware Included
- (4) 6-32 x 5/8" machine screws
- (4) 6-32 x 7/8" machine screws
- (4) 6-32 x 3/8" machine screws
- (4) 6-32 nut inserts
| Free Shipping | No |
|---|
