Ptt-enabled amplification speaker with independent adjustable volume knob
Includes hardwire power input cable, audio input cable and audio output cable
99db max volume level

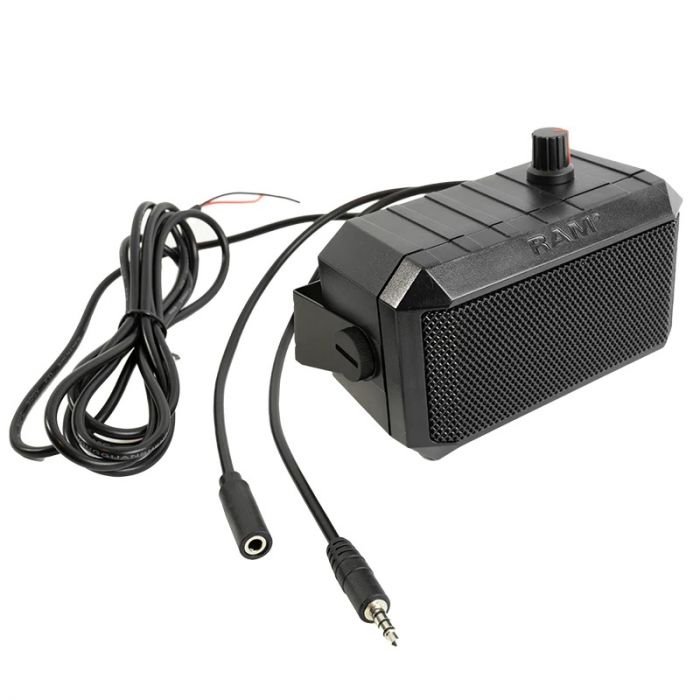

The RAM GDS Audio Amplified Speaker with PTT Breakout Feature can be hardwired into the cab of your vehicle with no batteries required for power. The audio breakout feature also allows for the inclusion of a PTT (push to talk) microphone (not included) or headset (not included) to enable half or full duplex conversation depending on the device and call solution being used. An adjustable knob allows for up to 99dB of amplified audio feedback from your device, and the speaker includes built-in overcurrent, short circuit, and overvoltage protection. As part of the GDS Ecosystem, the speaker can be mounted to any GDS vehicle dock using the RAM short bracket adapter or RAM standard bracket adapter. Each bracket includes hardware to mount the speaker to the bracket, as well as the bracket to your GDS vehicle dock.
Hardware Included | Mounting Bracket/(2) 8-32 X 5/8" Machine Screws/(2) 8-32 Nylock Nuts |
Speaker Specifications | |
Max Volume Level | 99Db |
Wattage | 8 / 10W Rated Speaker |
Input Voltage | 9V - 26V Dc |
Power Output | |
Peak Power | 10W |
Rms Power | 8W |
Input Connector | 3.5Mm Trrs Connector, With A Modified Ctia Pin Map For Audio In/Out |
Input Cable Length | 1150Mm Long Red/Black Power Cable |
Output Cable Length | 150Mm Long Audio Cable With 3.5Mm Mono Plug Jack |
Operating Temperature | -20C To +80C |
Storage Temperature | -40C To +85C |
Free Shipping | No |
---|
