RAM Glare Shield Clamp Mount With Round Plate
R1,899.00
SKU
RAMB177C202
Glare shield clamp base
Long double socket arm
Round base
Description

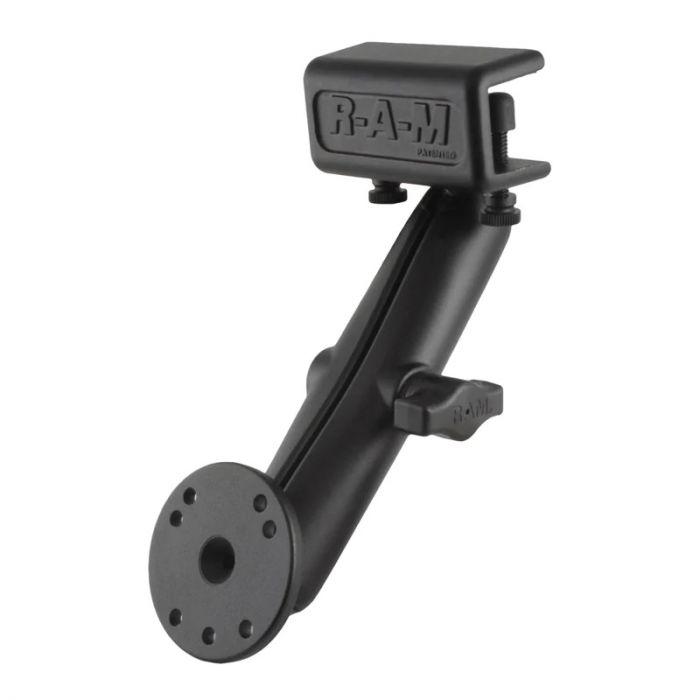

The RAM Glare Shield Clamp Mount With Round Plate consists of a glare shield clamp base, long double socket arm and round base that contains the universal AMPs hole pattern. This mount is designed to mount to the lip edge of a flat surface up to 5/8" thick. Popular mounting edges include a car side window edge lip or glare shield on an airplane. The base has two composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1" diameter rubber ball is connected to the base allowing you to connect a RAM 1" diameter arm socket and connection plates to create the perfect mount for your application. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles.
Features
- Glare shield clamp base
- Long double socket arm
- Round base
- Contains the universal AMPs hole pattern
Specifications
| Clamp Range | .625" Max |
| Socket To Socket Length | 5.31" |
| Hole Pattern | |
| 4-Hole Amps | 1.181" X 1.496" |
| 3-Hole 120-Degree | 1.812" Diameter |
| Ball Size | B Size (1") |
| Weight Capacity | |
| Standard Use | 2 Lbs |
| Heavy-Duty Use | 1 Lb |
| Materials | Marine-Grade Aluminum |
Hardware Included
- (2) 1/4"-20 x 1.25" composite thumb screws
- (2) rubber caps
- (1) 1.93" x 3.06" rubber adhesive pad
