RAM Handlebar U Bolt Double Ball Mount - For Garmin 45, 48, 89, 90, 92
R1,319.00
SKU
RAMB149ZG3U
Medium length B-size double socket arm
Handlebar U-Bolt Base
For Rails 0.5" to 1.25"
Description

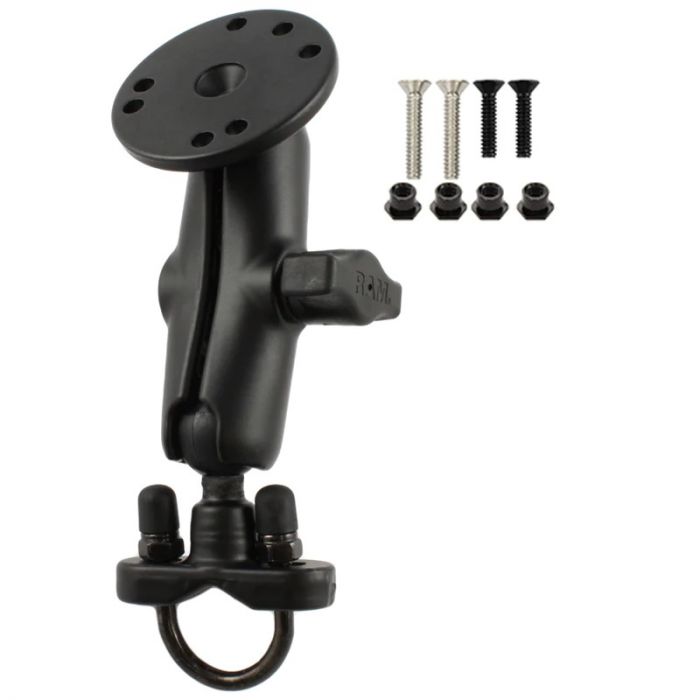

The RAM Handlebar U Bolt Double Ball Mount - For Garmin 45, 48, 89, 90, 92 consists of our medium length B-size double socket arm with our Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter and our 2.5" diameter round plate with universal AMPS hole pattern. This mount also includes the hardware needed to bolt that round plate to select Garmin GPS units. A complete list of compatible devices can be found below in the compatibility section.
Features
- Medium length B-size double socket arm
- Handlebar U-Bolt Base
- For Rails 0.5" to 1.25"
- 2.5" diameter round plate
- Universal AMPS hole pattern
Specifications
| Clamp Range | .5" - 1.25" Diameter |
| Socket To Socket Length | 3" |
| Hole Pattern | |
| 4-Hole Amps | 1.181" X 1.496" |
| 3-Hole 120-Degree | / 1.812" Diameter |
| Ball Size | B Size (1") |
| Weight Capacity | |
| Standard Use | 2 Lbs |
| Heavy-Duty Use | 1 Lb |
| Materials | Marine-Grade Aluminum |
Hardware Included
- (2) 6-32 x 3/4" machine screws
- (2) 6-32 x 5/8" machine screws
- (4) 6-32 nut inserts
- (1) 1/4"-20 u-bolt for .5" - 1" rails
- (1) 1/4"-20 u-bolt for 1" - 1.25" rails
- (2) 1/4"-20 nylock nuts
- (2) rubber caps
- (1) u-bolt spacer
| Free Shipping | No |
|---|
