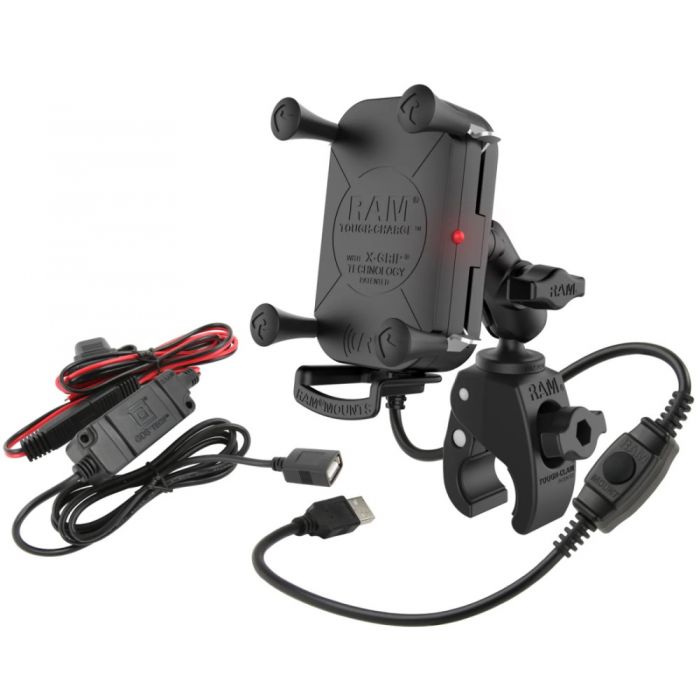

The Ram Tough-Charge Tough-Claw Waterproof Wireless Charging Mount - Black is the world's first patented, universal waterproof wireless charging cradle for phones. Designed with spring-loaded RAM X-Grip Technology, this cradle features an 'X' design that expands and contracts to secure nearly any phone while taking advantage of Qi wireless phone charging.
All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms.
This Qi wireless charging cradle ensures your compatible phone charges no matter what position it's placed at. For added security and peace of mind, a device tether is included thats recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether.
This RAM Tough-Charge with X-Grip Technology wireless charging kit includes a B size diamond base featuring a 1" rubber ball, short length double socket arm, and a RAM Tough-Claw clamping base. With the RAM Tough-Claw base, you can easily attach the wireless phone charger to round, square, and odd-shaped rails and bars ranging from .625" to 1.5" in outer diameter.
The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hard-wire charger.
Holder Dimensions | Width Range: 2.375" - 3.25", Depth Range: .875" Max |
Clamp Range | .625" - 1.14" Diameter |
Socket To Socket Length | 1.75" |
Ball Size | B Size (1") |
Weight Capacity | Standard Use: 2 Lbs, Heavy-duty Use: 1 Lb |
Materials | High Strength Composite, Stainless Steel |
Packaging Type | Retail Box |
Power Specifications | |
Input Power | 5v-2a 9v-1.67a |
Output | 5w / 7.5w / 10w |
Conversion Efficiency | 85% Max |
Maximum Case Thickness | 6mm |
Working Frequency | 110-205khz |
Product Standard | Wpc V.1.2.4 |
Qi Compatible | Yes |
Compatible With | Qc2.0/qc3.0 Power Supplies |
Operating Temperature | 0 C To +37.7 C |
Compliance | Overvoltage Protection, Short Circuit Protection, Reverse Polarity Protection, Rohs Compliance, Weee Compliance, Sae J-1113-5 Load Dump (Transient Voltage), Moisture Resistant |
Certifications | Ce Certification, Kc, E-mark Certification, Rcm Certification, Fcc Certification |
Weight | 1.85 Lb |
Colour | Black |
Free Shipping | No |
---|
