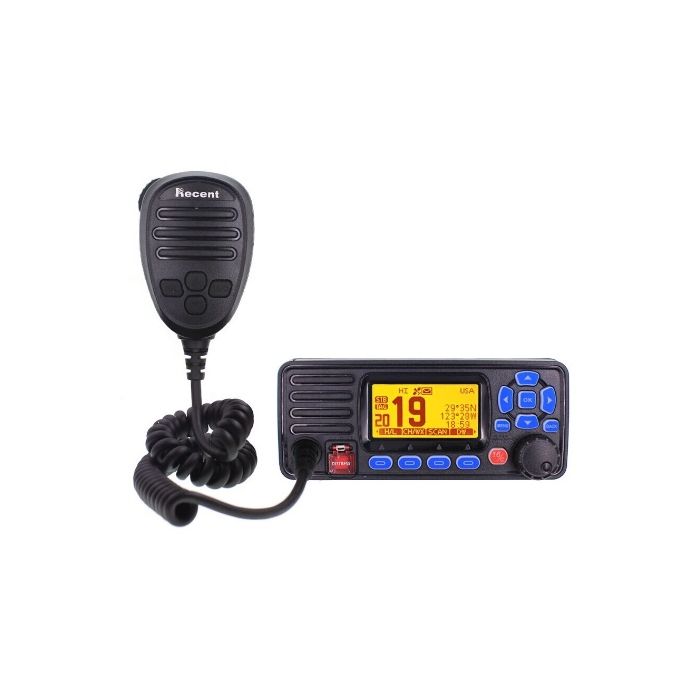

The Recent 509MG Marine VHF Radio With DSC & GPS has a built-in GNSS module, support GPS, GLONAS and SBAS satellite-based augmentation system (WAAS/EGNOS/MSAS/GAGAN). Standard NMEA interface (RS-422 protocol). DSC distress calls in 11 categories, all DSC calls in 3 security categories. Dual receiver, independent DSC dedicated receiver. Manually input GPS latitude and longitude and time. DSC call reception and transmission records can be queried. Channel number display digits selectable: 3 digits(01B)/ 4 digits(2001). Support latest marine channel standards and DSC protocol standards.
Frequency | TX: 156.000-162.000MHz, RX: 156.000-163.425MHz |
Rf Power | 25W/1W |
Modulation Mode | 16K0G3E(FM), 16K0G2B(DSC) |
Frequency Stability | +-5ppm |
Power Supply | DC13.8V (+-15%) |
Channel Spacing | 25kHz |
Antenna Impedance | 50 |
Output Impedance (Audio) | 4 |
Dimensions (Wxhxd) | 155x68x86mm |
Weight | 721g |
Nmea Formats (In) | RMC, GGA, GNS, GLL, VTG |
Nmea Formats (Out) | DSC, DSE, RMC, GSA, GSV |
Free Shipping | No |
---|
