Replay XD 4.3" ReView Field Monitor
R3,579.00
SKU
BN263
Description

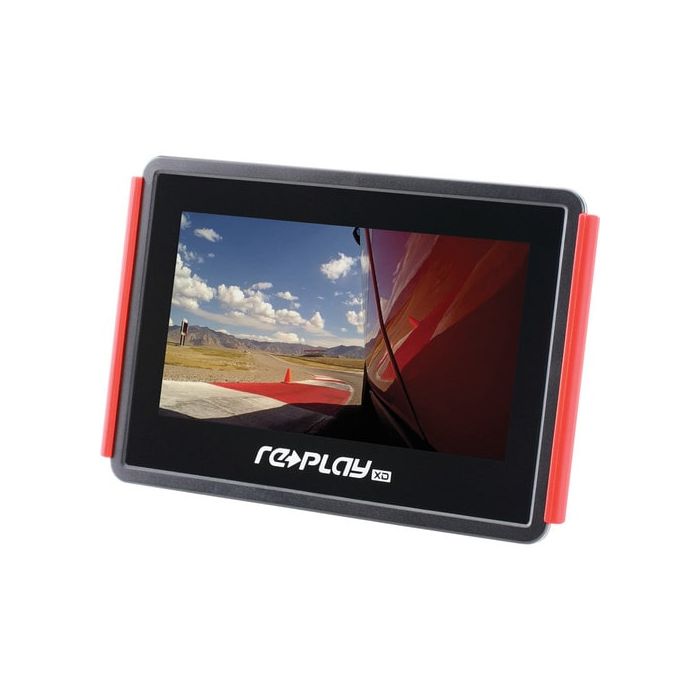

The Replay XD 4.3" ReView Field Monitor is a monitor that you can use with your Replay XD1080 camera. It features HDMI connectivity, which makes it compatible with several other cameras and camcorders as well. The 4.3" LCD monitor also offers several pro level features including an audio output, volume control and brightness control. Plus, it has three 1/4"-20 tripod mounts and a removable ergonomic handle, which means you can mount it to a tripod or use it as a handheld device. The monitor can even stand upright on its own when used with the ergonomic handle. The built-in 3.5mm audio output can be used for monitoring audio levels and a built-in speaker allows you to share footage instantly. Other features include a built-in battery and LED indicators for power and charging.
Features
- Mount It or Hold It
- There are 3 built-in 1/4"-20 tripod mounts on the bottom right, left and center of the ReView, allowing for flexible mounting with your existing gear. You can also hold the device in your hand or stand up the ReView with the removable ergonomic handle
- HDMI Connectivity
- The device's HDMI input is fully compatible with the Replay XD1080 camera, as well as several other DSLRs, large sensor camcorders, POV action camcorders and other Full HD cameras with HDMI 1080/30p or 1080/60i output
- Live View & Playback
- The ReView Field Monitor is perfect for utilizing the Live View and Playback functions from the Replay XD1080 camera. Just plug-in the HDMI cable and get instant Live View from your camera all without the headache of pairing or syncing to another device
- Brightness Control
- The ReView Field Monitor features a brilliant widescreen display with brightness adjustment, so you can fine-tune your picture depending on if you're shooting indoors or outdoors
- Built-in Audio Jack
- The ReView Field Monitor has a 3.5mm audio-out jack so you can listen to your audio during Live View or Playback to make sure the audio levels are just right
- Built-in Speaker
- You can also listen to your footage live through the built-in speaker, making it easy to share your footage instantly
- Built-in Battery
- The ReView Field Monitor features a built-in battery that lasts almost all-day. You can charge the ReView with a standard mini-USB cable or the USB cable that is supplied with your Replay XD1080. Replay XD also offers an optional Rapid Charge USB cable for an even quicker charge
Specifications
| Display Type | TFT LCD |
| Display Size | 4.3" (10.9 cm) |
| Display Resolution | 480 x 272 |
| Connectivity | HDMI (type-A) input x 1 |
| 1/8" (3.5 mm) stereo headphone jack x 1 | |
| Mini-USB input x 1 (charging) | |
| Mini-USB (8-pin) input x 1 (charging) | |
| Resolution Support | Full HD 1080p at 30 Hz |
| Tripod Socket | 1/4"-20 x 3 |
| Speaker | 0.8 W (mono) |
| LED Indicators | Power on |
| Charging | |
| Controls | Power |
| Volume | |
| Brightness | |
| Battery Type | Lithium-ion (3.7 V) |
| Battery Capacity | 3000 mAh |
| DC Input | 5 V / 1 A |
| Dimensions (WxHxD) | 4.7 x 3.4 x 1.1" (120 x 87 x 27 mm) display only |
| 4.9 x 3.4 x 2.7" (126.5 x 87 x 67.5 mm) display with handle | |
| Weight | 6.5 oz (184 g) display only |
| 7.9 oz (224 g) display with handle |
| Free Shipping | No |
|---|
