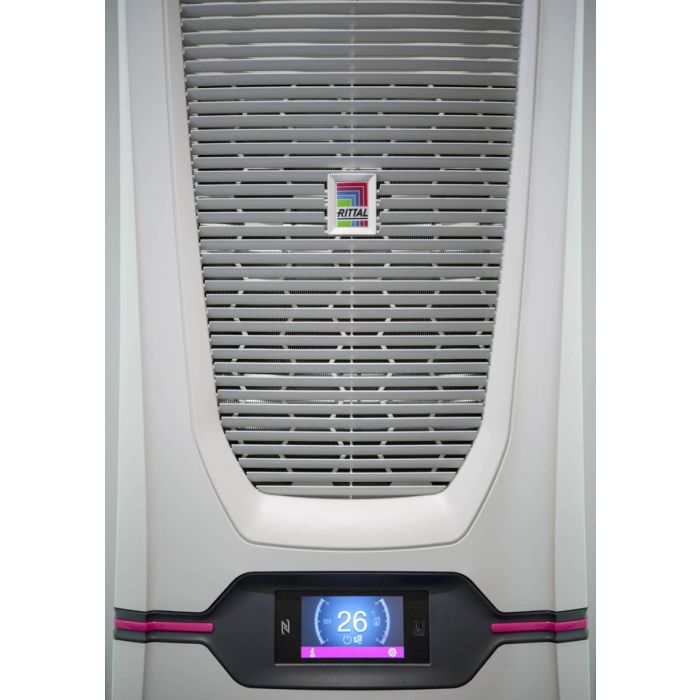

Rittal SK Blue e+ Wall Mount Cooling Unit - 1.6KW, 1p/3p, 230/400V
R99,229.00
SKU
318553
Shipping restrictions apply.
Description
The Rittal SK Blue e+ Wall Mount Cooling Unit - 1.6KW, 1p/3p, 230/400V is a revolutionary energy efficiency with innovative hybrid technology. Average 75% energy savings thanks to speed-regulated components and heat pipe technology. Unique multi-voltage capability for worldwide use. Intuitive operation via touch display.
Options:
For remote monitoring and networking of cooling units and chillers in the Blue e+ generation, please use the IoT interface (Model No. 3124.300). Increase machine availability and process reliability with remote monitoring of device data, statuses and system messages.
Please Note:
Please observe the mounting instructions. Firmware can be updated using the RiDiag III software (3159.300)
Features
- Average 75% energy savings thanks to speed-regulated components and heat pipe technology
- Suitable for international use due to a unique multi-voltage capability
- Longer service life of the components inside the enclosure and the cooling unit due to component-friendly cooling
- Intuitive operation due to touch display and intelligent interfaces
Specifications
| Material | Stainless steel 1.4301 (AISI 304) |
| Colour | RAL 9007 |
| Protection Category IP to IEC 60 529 | Internal circuit IP 55 |
| Supply Includes | Nano-coated condenser, Integral electric condensate evaporation, Assembly parts and Fully wired ready for connection (plug-in terminal strip) |
| Variant | Wall-mounted |
| Total Cooling Output to DIN EN 14511 | L 35 L 35 at 50 Hz: 1.6 kW, L 35 L 35 at 60 Hz: 1.6 kW, L 35 L 50 at 50 Hz: 1.2 kW, L 35 L 50 at 60 Hz: 1.2 kW |
| Rated Power Input | 0.62 kW |
| Air Throughput (Unimpeded Air Flow) | External circuit: 895 m3/h |
| Internal Circuit | 700 m3/h |
| Rated Operating Voltage | 110 V - 240 V, 1, 50 Hz/60 Hz and 380 V - 480 V, 3, 50 Hz/60 Hz |
| Dimensions (W x H x D) | 400 x 950 x 310 mm |
| Temperature Control | e+ controller (factory setting +35 C) |
| Temperature Range: Bearing | -40 C...+70 C |
| Operation (Environment) | -20 C to +60 C |
| Setting Range | +20 C to +50 C |
| Refrigerant | R134a |
| Quantity | 0.75Kg |
| Global Warming Potential (GWP) | 1430 |
| CO2 Equivalent (CO2e) | 1.07 t |
| Power Consumption Pel | L 35 L 35 at 50 Hz: 0.54 kW, L 35 L 35 at 60 Hz: 0.54 kW, L 35 L 50 at 50 Hz: 0.61 kW, L 35 L 50 at 60 Hz: 0.61 kW |
| Permissible Operating Pressure (p. max.) | 24 bar |
| Seasonal Energy Efficiency Ratio (SEER) 50/60 Hz | 6.4 |
| eClss 8.0/8.1 | 27180704 |
| Energy Efficiency Ratio (EER) 50/60 Hz L35 L35 | 3,1 / 3,1 |
| Packs of | 1 pc(s) |
| Weight/pack | 36.3kg |
| Free Shipping | No |
|---|
