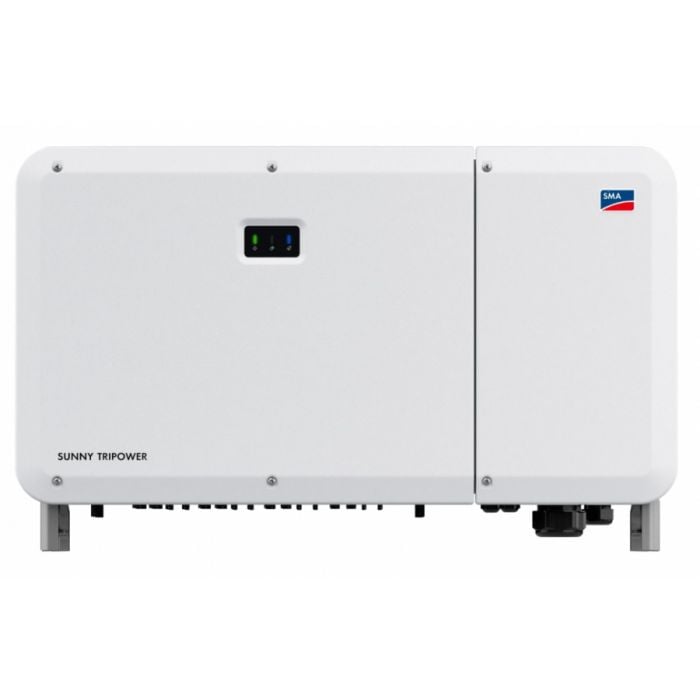

SMA Sunny Tripower 110-60 CORE2 Inverter - 110kW

R150,649.00
SKU
3000100437
12 MPP trackers 24 strings with 1100 VDC Sunclix connector 110 kW for standard 400 VAC Peak efficiency of 98.6% Premium monitoring service
Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed
Manufacturer's Website





Description

The SMA Sunny Tripower 110-60 CORE2 Inverter - 110kW is the perfect inverter for larger commercial PV systems. It is the ideal inverter for decentralized system structures up to a megawatt range of up to 110 kilowatts. The inverter contains a total of 24 strings and 12MPP trackers, thus achieving the highest possible energy yield with the PV system. The Core 2 makes it possible to generate a particularly high solar coverage on different roofs during the day. This even with partially shaded solar panels.

The SMA core 2 contains a total of 12MPP trackers and 24 strings with 1100VDC Suncllix connections. The Core 2 ensures maximum energy yield and includes premium monitoring service for safe and reliable system performance. With this service from SMA, the user is assured of the highest possible PV system efficiency. The inverter has a EURO efficiency of 98.4% and a MAX efficiency of 98.6%. This with an AC-power of 11000Wp and a DC-PV power of, 165000Wp STC.



Features

  • For large rooftop and ground-mounted systems up to the MW range
  • 12 MPP trackers
  • 24 strings with 1100 VDC Sunclix connector
  • 110 kW for standard 400 VAC
  • Fast commissioning without additional DC combiners
  • Peak efficiency of 98.6%
  • Premium monitoring service for reliable system performance
  • Maximum yields thanks to the integrated software solution SMA ShadeFix
  • Flexible and future-proof expansion in the SMA Energy System Business
  • Holistic energy management with ennexOS
  • High IT security



Specifications

Max. DC Power 165 kW
Max. DC Voltage 110 V
Rated DC Voltage 585 V
Min. DC Voltage to Start Feed In 250 V
Max. DC Current 312 A
MPP(T) Voltage Range 500-800 V
No of MPP Trackers 12
DC Inputs 2
Max. AC Power 110 kW
Output AC Voltage Range 320-460 V
Nominal AC Voltage 400 V
Frequency Range 45-65 Hz
Frequency 50, 60 Hz
Power Factor (cos) 0.8
Distortion (THD) < 3 %
No Of Feed-In Phases 3
Max. Efficiency 98.6 %
Euro Efficiency 98.4 %
AC Output Connection Screw
Dimensions (H/W/D) 682x1117x363 mm
Weight 93.5 kg
Noise Level <65 dB(A)
Operating Temperature -30 - +60 C
Transformer Transformerless
Protection Class IP66
Humidity 0-100 %
Interface Ethernet
Display LED
Protection Features Short Circuit Protection, Overvoltage Protection, Surge Protection, Ground Fault Monitoring, Isolation Monitoring
