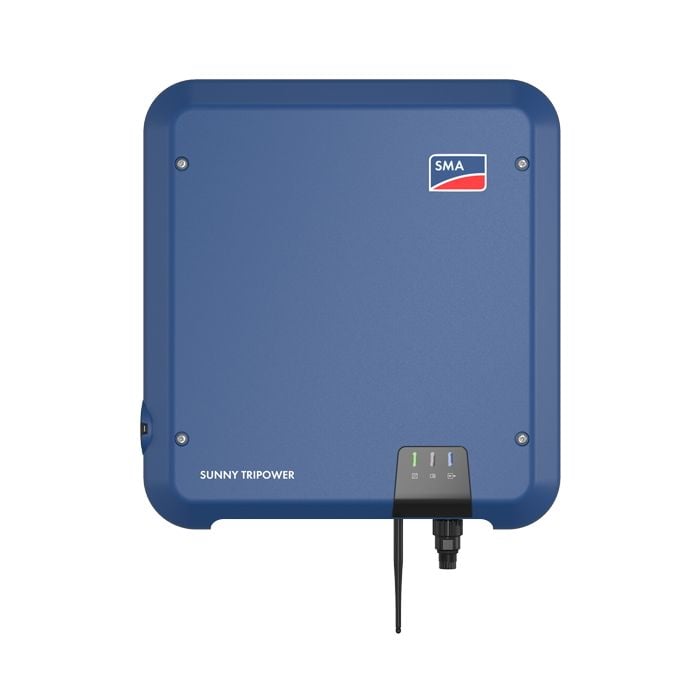

SMA Sunny Tripower 3.0-3AV-40 Solar Inverter
R34,909.00
SKU
3000100405
100% plug and play installation
Integrated SMA Smart Connected
Integrated shade management
Free online monitoring
Dynamic active power limitation
Description
The Sunny Tripower 3.0-3AV-40 Solar Inverter makes PV systems in private households especially powerful. It combines top inverter performance with maximum ease and comfort for its users. With integrated services and shade solutions, it can meet any challenge found on roofs. The Sunny Tripower reliably ensures maximum solar yields and reduces electricity costs.
Weighing only 17 kilograms, this three-phase Sunny Tripower can be installed quickly while taking up minimal space. The Sunny Tripower can be commissioned quickly via smartphone or tablet thanks to its integrated web interface.
The Sunny Tripower has it all, with established product features such as OptiTrac Global Peak and SMA Smart Connected that are now supplemented with integrated TS4-R communication for module optimization. Thanks to this, even shade on the module is no problem. The OptiTrac Global Peak integrated shade management system ensures maximum yields in light shade.
Features
- One-person installation due to low weight of 17 kg
- Compact design means minimum space requirements
- 100% plug and play installation
- Integrated SMA Smart Connected service
- Integrated shade management with OptiTrac Global Peak and TS4-R communication
- Free online monitoring via Sunny Portal and Sunny Places
- Dynamic active power limitation
- Automatic inverter updates
- Intelligent energy management and storage solutions can be added anytime
- Can be combined with TS4-R components for module optimization
Specifications
| Input (DC) | |
| Max. PV Array Power | 6000 Wp |
| Max. Input voltage | 850 V |
| MPP Voltage range | 140 V to 800 V |
| Rated Input Voltage | 580 V |
| Min. Input Voltage / Initial Input Voltage | 125 V / 150 V |
| Max. Input Current Input A / Input B | 12 A / 12 A |
| Max. DC Short-Circuit Current Input A/Input B | 18 A / 18 A |
| Number of Independent MPP Inputs / Strings Per MPP Input | 2/A: 1; B: 1 |
| Output (AC) | |
| Rated Power (at 230 V, 50 Hz) | 3000 W |
| Max. Apparent Power AC | 3000 VA |
| AC Voltage Range | 180 V to 280 V |
| AC Grid Frequency / Range | 50 Hz / 45 Hz to 55 Hz |
| Max. Output Current | 3 x 4.5 A |
| Feed-In Phases / Connection Phases | 3/3 |
| Efficiency | |
| Max. Efficiency / European Efficiency | 98.2% / 96.5% |
| Dimensions (W / H /D) | 435 mm x 470 mm x 176 mm |
| Weight | 17 kg |
| Self-Consumption (At Night) | 5.0 W |
| Topology / Cooling Concept | Transformer less / Convection |
| Degree of Protection (According To IEC 60529) | IP65 |
| Free Shipping | No |
|---|
