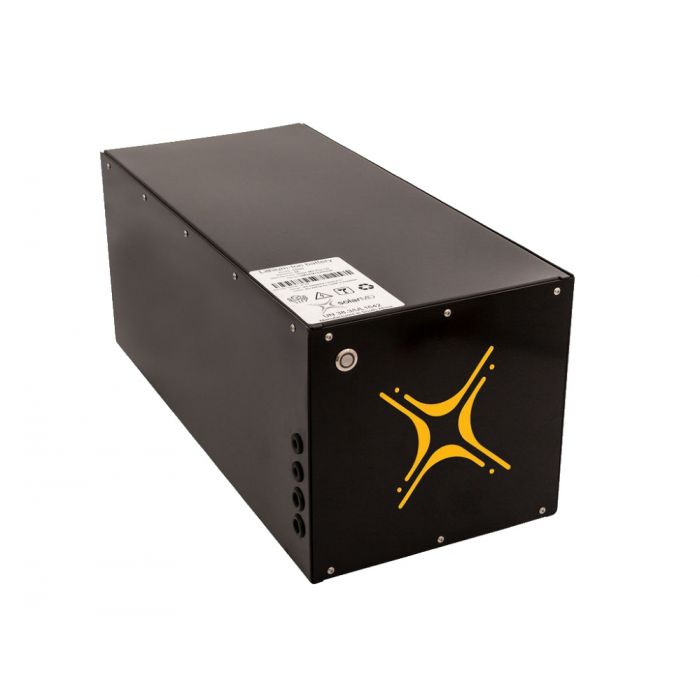

Solar MD 7.4kWh Rack Mount
R57,499.00
SKU
5300100021
Description
The Solar MD 7.4kWh Rack Mount is a cabinet mounted Lithium Iron-Phosphate battery for streamlined energy storage. We use a flexible modular design to set up on the CB-12 Cabinet (7.4-22.2kWh) with 1 to 3 SS202 cabinet mount battery modules. The Solar MD SS202 features different storage capacities, according to user requirements.
The capacity can be increased through a parallel connection of the batteries. The Solar MD standard battery and the SS202 has been widely used in energy storage applications in the African market. In fact, we produced the battery with world-leading LiFePO4 technology.
Features
- Stable discharge platform
- Excellent safety
- Long life cycle
- High-temperature performance
- High energy density
- High charge and discharge rate
- Very high efficiency
Specifications
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Battery Module | SS202 |
| Rated Battery Capacity | 7.4kWh |
| Output Power | Max 5kW |
| Usable Battery Energy @0.3C | 7.4kWh |
| Nominal Voltage | 51.2V |
| Number of Battery Modules | 1 module |
| Weight of SS202 | 63kg |
| Operational Voltage | 44.8-55.6 Vdc |
| Communication | CAN |
| Dimensions of SS202 (mm) | Width 300, depth 300, height 630 |
| Battery Cycle Life [+25 degrees] | >4000 |
| Charging Efficiency | 99% |
| Operational Temperature (degrees) | -5 to +50 degrees |
| Transport | UN3480 & UN38.3 |
| Storage Duration | 6 months at +25 degrees |
| Safety Standard Compliance | IEC 62619 / UN 38.3 / UL1642 |
| Cell Certificate | TUV/ CE / RCM / UL1642 |
| Free Shipping | No |
|---|
