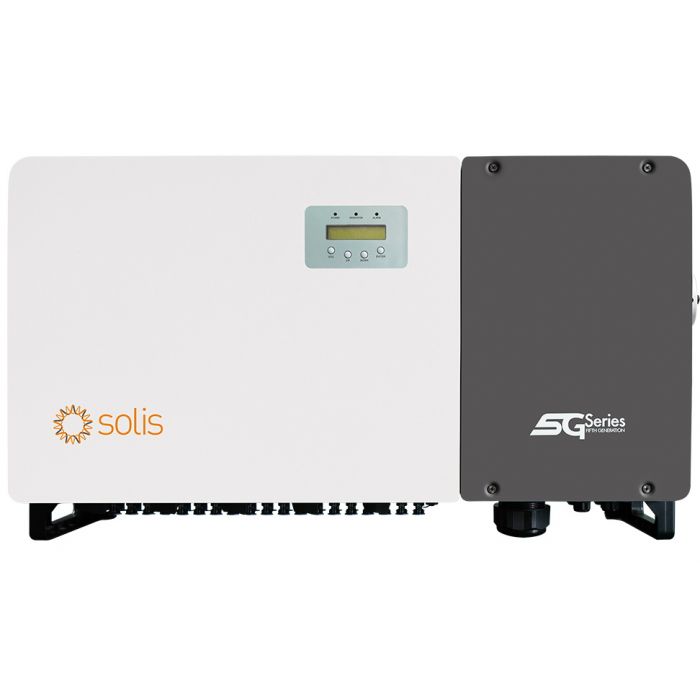

Solis 5G 3 Phase 10 MPPT Inverter - 110kW, DC
R105,349.00
SKU
SOL11003PH5GDC
Leakage current repression technology
Remote firmware upgrade with simple operation
Intelligent string monitoring
Shipping restrictions apply.
Description
The Solis 5G 3 Phase 10 MPPT Inverter - 110kW, DC is designed to provide a flexible configuration scheme with a smaller environmental impact rate and a higher generation efficiency. The 5G Series features a remote and local intelligent IV scan function with 150% DC overloading capability and maximum 13A per string.
Features
- Maximum 13A per string (26A per MPPT), 150% DC overloading capability
- 9 individual MPPT, lower mismatch loss
- An efficient logic algorithm, over 99% max. efficiency
- String monitoring, shorter O&M time
- Remote & local intelligent IV scan function
- Leakage current repression technology
- Volt-watt work mode integrated
- DC input reverse alarm
- Optional anti-PID function integrated
- Reactive power compensation function
- Type ll surge protection for DC and AC
Specifications
| Weight | 84 kg |
| Rated Power | 110,000 W |
| Min PPT Voltage | 180 V |
| Max PPT Voltage | 1,000 V |
| DC Startup Voltage | 195 V |
| DC Shutdown Voltage | 180 V |
| Max Input Voltage | 1,000 V |
| Max DC Power | 165,000 W |
| Max AC Power (5 Minutes) | 110,000 W |
| Surge AC Power (1 Second) | 110,000 W |
| Max DC Current | 260 A |
| Max DC Inputs | 20 |
| Has DC Fuses | 0 |
| Connector | MC4 |
| Included Connectors | 32 |
| Euro Efficiency | 98.3 % |
| Transformer | None |
| MPPT Quantity | 10 |
| Has Integrated DC Switch | Yes |
| Free Shipping | No |
|---|
