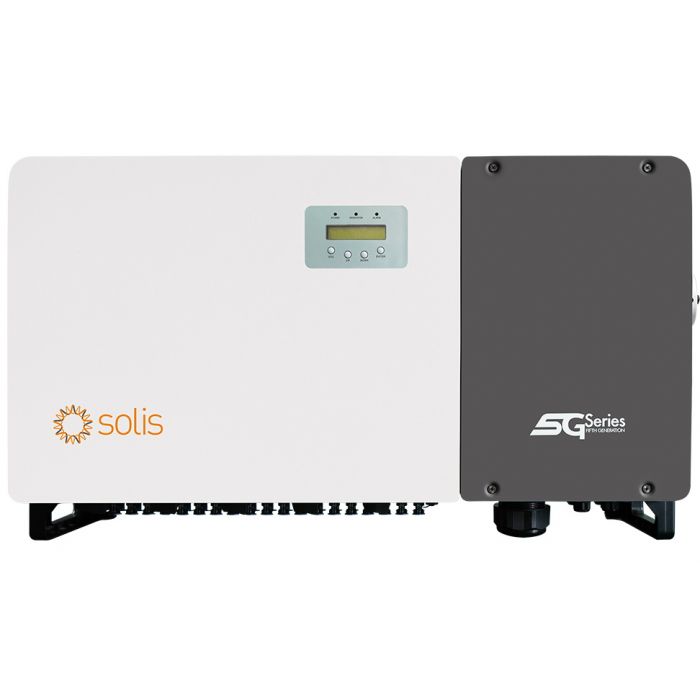

Solis 5G 3 Phase 9 MPPT Inverters - 80kW, DC, Pack Of 3
R220,919.00
SKU
SOL8003PH5GDC3
Shipping restrictions apply.
Description
The Solis 5G 3 Phase 9 MPPT Inverters - 80kW, DC, Pack Of 3 is designed to provide more flexible configuration scheme with a smaller environmental impact rate and a higher generation efficiency. This 5G series features a remote and local intelligent IV scan function with a built-in PID recovery for better module performance.
Please Note: Contains 3 x inverters.
Features
- Maximum 13A per string (26A per MPPT), 150% DC overloading capability
- 9 individual MPPT, lower mismatch loss
- An efficient logic algorithm, over 98.7% max. efficiency
- String monitoring, shorter O&M time
- Remote & local intelligent IV scan function
- Leakage current repression technology
- Volt-watt work mode integrated
- DC input reverse alarm
- Optional anti-PID function integrated
- Reactive power compensation function
- Type ll surge protection for DC and AC
- Integrated AFCI (DC arc-fault circuit protection)
Specifications
| Max. Input Voltage | 1100V |
| Rated Voltage | 600V |
| Start-Up Voltage | 195V |
| MPPT Voltage Range | 180-1000V |
| Max. Input Current | 9*26A |
| Max. Short Circuit Current | 9*40A |
| MPPT Number | 9 |
| Max. Input Strings Number | 18 |
| Rated Output Power | 80kW |
| Max. Apparent Output Power | 88kVA |
| Max. Output Power | 88kW |
| Rated Grid Voltage | 3/N/PE, 220/380V, 230/400V |
| Rated Grid Frequency | 50/60Hz |
| Rated Grid Output Current | 121.6A |
| Max. Output Current | 133.7A |
| Power Factor | >0.99 (0.8 leading - 0.8 lagging) |
| THDi | <3% |
| DC Injection Current | <0.5% In |
| Max. Efficiency | 98.7% |
| EU Efficiency | 98.3% |
| DC Reverse-Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Output Over Current Protection | Yes |
| Surge Protection | DC Type II / AC Type II |
| Grid Monitoring | Yes |
| Anti-Islanding Protection | Yes |
| Strings Monitoring | Yes |
| I/V Curve Scanning | Yes |
| Anti-Pid Function | Optional |
| Integrated AFCI (DC Arc-Fault Circuit Protection) | Yes |
| Integrated DC Switch | Yes |
| Integrated AC Switch | Optional |
| Dimensions (W*H*D) | 1050 x 567 x 314.5 mm (with AC switch) |
| Weight | 82 kg |
| Topology | Transformerless |
| Self Consumption | <2W (night) |
| Operating Ambient Temperature Range | -25~60℃ |
| Relative Humidity | 0~100% |
| Ingress Protection | IP66 |
| Noise Emission (Typical) | ≤65 dB(A) |
| Cooling Concept | Intelligent redundant fan-cooling |
| Max. Operation Altitude | 4000 m |
| Grid Connection Standard | VDE-AR-N 4105, VDE V 0124, VDE V 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99, EN 50549-1/-2, RD 1699, UNE 206006, UNE 206007-1, IEC 61727, DEWA |
| Safety/EMC Standard | IEC 62109-1/-2, IEC 62116, EN 61000-6-2/-4 |
| DC Connection | MC4 connector |
| AC Connection | OT terminal (max. 185 mm²) |
| Display | LCD |
| Communication | RS485, Optional: Wi-Fi, GPRS, PLC |
| Free Shipping | No |
|---|
