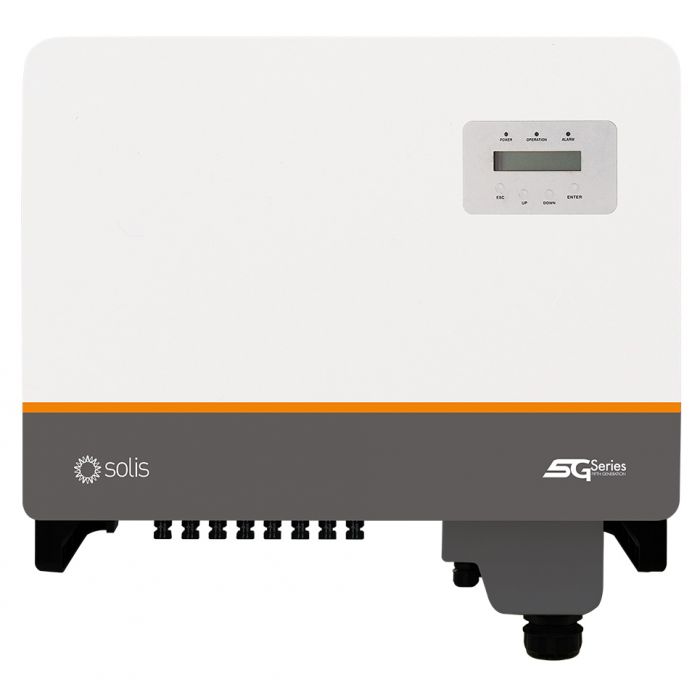

Solis 5G 3 Phase Triple MPPT Inverter - 30kW, DC
R37,199.00
SKU
SOL3003PH5GDC
Shipping restrictions apply.
Description
The Solis 5G 3 Phase Triple MPPT Inverter - 30kW, DC is designed to provide a flexible configuration scheme with a smaller environmental impact rate and a higher generation efficiency. This 5G series creates a more comfortable and friendly working and living environment.
Features
- Over 98.8% maximum efficiency
- Natural convection, fan-less design
- Type II surge arrester for both DC and AC
- Fuse free design to avoid fire hazard caused
- 200V-1000V MPPT voltage range-ultra low start-up
- 12.5A input for each PV string
- Strings intelligent monitoring, smart I-V curve diagnosis supported (depending on inverter size)
- 3 MPPT design with precise MPPT algorithm, effectively reducing string mismatch
- RS485/ RJ45/ Wi-Fi/ GPRS interface integration (optional), remote upgrade supported
Specifications
| Recommended Max. PV Power | 39kW |
| Max. Input Voltage | 1100V |
| Rated Voltage | 600V |
| Start-Up Voltage | 180V |
| MPPT Voltage Range | 200-1000V |
| Max. Input Current | 3*26A |
| Max. Short Circuit Current | 3*40A |
| MPPT Number | 3 |
| Max. Input Strings Number | 6 |
| Rated Output Power | 30kW |
| Max. Apparent Output Power | 33kVA |
| Max. Output Power | 33kW |
| Rated Grid Voltage | 3/N/PE, 220/380V, 230/400V |
| Rated Grid Frequency | 50Hz/60Hz |
| Rated Grid Output Current | 45.6A/43.3A |
| Max. Output Current | 50.2A |
| THDi | <3% |
| Power Factor | >0.99 (0.8 leading - 0.8 lagging) |
| Max. Efficiency | 98.8% |
| EU Efficiency | 98.3% |
| DC Reverse-Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Output Over Current Protection | Yes |
| Surge Protection | DC Type II / AC Type II |
| Grid Monitoring | Yes |
| Anti-Islanding Protection | Yes |
| Temperature Protection | Yes |
| Strings Monitoring | Yes |
| I/V Curve Scanning | Yes |
| Anti-Pid Function | Optional |
| Integrated DC Switch | Optional |
| Dimensions (W X H X D) | 647 x 629 x 252 mm |
| Weight | 45 kg |
| Topology | Transformerless |
| Self Consumption | <1W(Night) |
| Operating Ambient Temperature Range | -25~60℃ |
| Relative Humidity | 0~100% |
| Ingress Protection | IP65 |
| Cooling Concept | Natural convection |
| Max. Operation Altitude | 4000 m |
| Grid Connection Standard | VDE-AR-N 4105, VDE V 0124, VDE V 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99, EN 50549-1/-2, IEC61727, DEWA |
| Safety/EMC Standard | IEC 62109-1/-2, IEC62116, EN 61000-6-1/-2/-3/-4 |
| DC Connection | MC4 connector |
| AC Connection | OT terminal |
| Display | LCD |
| Communication | RS485, Optional: Wi-Fi, GPRS |
| Free Shipping | No |
|---|
