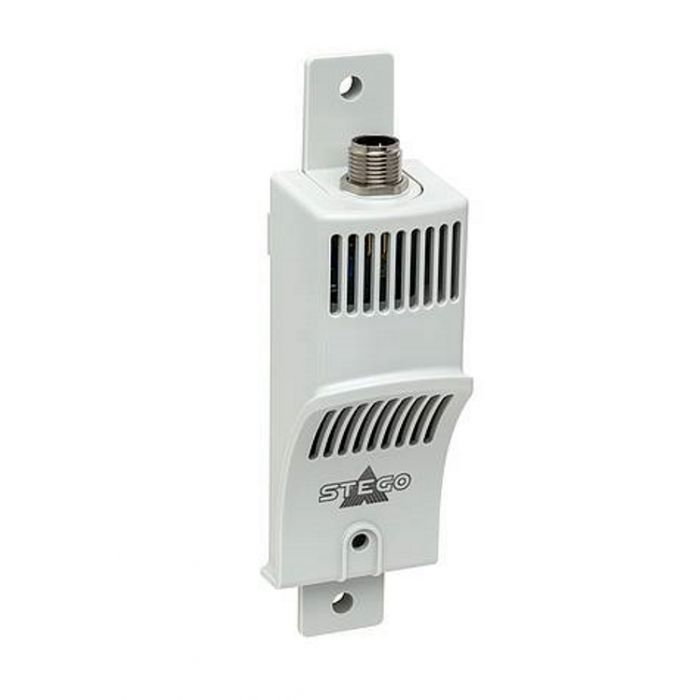

Stego CSS 014 Temperature Humidity Smart Sensor - 4-2mA, 24V DC
R4,299.00
SKU
1420200
Analog/digital interface
Small size
Easy clip and/or screw fixing
High accuracy
Large temperature and humidity range
Description
The Stego CSS 014 Temperature Humidity Smart Sensor - 4-2mA, 24V DC is a compact Smart Sensor that electronically records temperature and humidity and converts the measured data into a standardized analogue 4-20 mA or a digital IO-Link signal.
The converted value signals can be utilized or further processed by a control or monitoring unit, e.g. a PLC control. The Smart Sensor is suitable for installation inside and outside the enclosure, even in harsh environmental conditions, as can be found in the wind power industry: in shielded outdoor areas and exposed to vibrations.
Features
- Analog/digital interface
- Small size
- Easy clip and/or screw fixing
- High accuracy
- Quick connection (M12 plug-in connector)
- Large temperature and humidity range
- Various application areas (IEC 61010-1/DIN EN 61010-1)
Specifications
| Interface | 4-20 mA |
| Operating Voltage | DC 24 V (DC 12-30 V): 0 Ω < R < 160 Ω: (DC 12-30 V) 160 Ω < R < 500 Ω: (DC 20-30 V) |
| Power Consumption Max. | 1.8 W (typically 0.4 W) |
| Temperature Measuring Range | -40 to +60 Degrees Celsius |
| Load Resistance (External) | ≤ 500 Ω (4-20 mA only) |
| Connection | M12 round plug connector, IEC 61076-2-101, 4-pin, A-coded, shielded |
| Electrical Protection | Reverse-polarity, short circuit, overvoltage protection |
| Mounting | Clip for 35 mm DIN rail, EN 60715 and screw fixing M5 |
| Casing | Plastic according to UL94 V-0, light grey |
| Dimensions | 140 x 40 x 38 mm |
| Weight | Approx. 50 g |
| Fitting Position | Vertical (connection on top) |
| Storage Temperature | -40 to +70 C |
| Operating/Storage Humidity | Max. 90% RH (non-condensing) |
| Protection Type1/Protection Class | IP20 (sensor only IP57) / III (SELV) |
| Approvals | VDE, UL File No. E500143 (acc. to IEC 61010-1/DIN EN 61010-1), EAC |
| Free Shipping | No |
|---|
