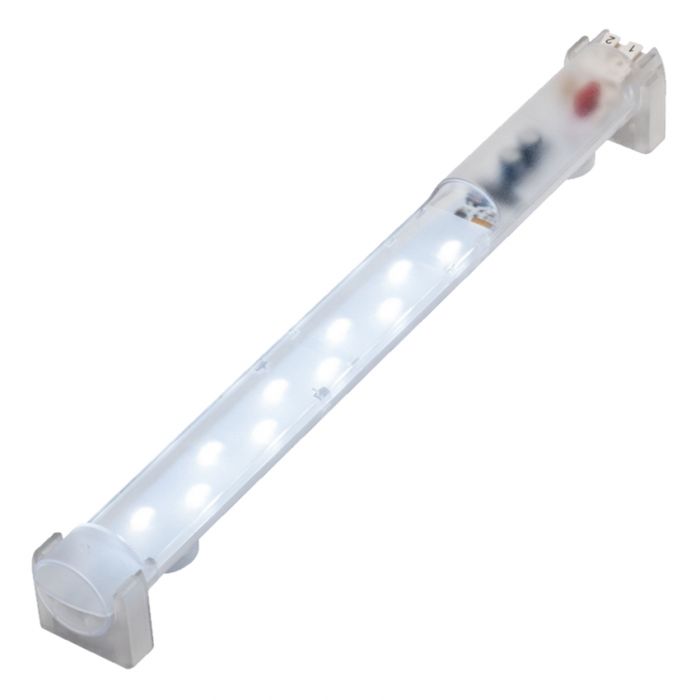

Stego 02542.3-13 Ecoline LED Lamp - 24-48VDC
R999.00
SKU
02542313
- Integrated power unit
- Long-lived and maintenance-free by LED technology
- Daisy chain
- Dual pressure connection clamp
Description
The Stego 02542.3-13 Ecoline LED Lamp - 24-48VDC is suitable for all types of panels and enclosures, especially where space is at a premium. The lamps have a very long service life thanks to the use of LED technology. Three different fixing options provide more flexibility for installation. The Ecoline series is a simplified version of the standard LED 025 lamp and has a dual pressure clamp for connection instead of connectors. Nonetheless, it is suitable for daisy-chaining and allows for up to 10 lamps to be connected.
The lamps are available with magnet fixing for easy positioning in any steel cabinet or enclosure. The clip holders exclusively designed for clip fixing of the LED 025 and can be positioned anywhere in the cabinet by simply screwing the holders to the cabinet wall. The lamp is snapped into the clip holders and can be turned in both directions. With a total rotation angle of 180 it provides perfect illumination within the cabinet or enclosure.
Features
- Integrated power unit
- Long-lived and maintenance-free by LED technology
- Daisy chain
- Dual pressure connection clamp
- Magnet, screw or clip fixing
- PCK connector onboard
- Wide voltage range
Specifications
| Operating Voltage | DC 24 48 V (min. DC 20 V, max. DC 60 V) |
| Power Consumption | Max. 5W |
| Luminosity | 400Lm at 120 |
| Lamp Type | LED, angle of radiation 120 Degrees light Colour daylight, Colour temperature: 6,000K to 7,000K |
| Service Life | 60,000h at +20 C |
| Connection | 2-pole dual pressure clamp for rigid wire 2.5mm2, stranded wire (with wire end ferrule) 1.5mm2 |
| Switch | No |
| Operating / Storage Temperature | -30 to +60 C / -40 to +85 C |
| Mounting Bracket | Included magnet fixing or screw fixing (M5), clip fixing (M6) torque 2Nm max. |
| Dimensions | 351 x 41 mm |
| Casing | Plastic, Transparent |
| Weight | 0.2kg |
| Operating/Storage Humidity | Max. 90% RH (non-condensing) |
| Protection type / Protection class | IP20 / II (double insulated) |
| Free Shipping | No |
|---|
