Stego SD 035 Plug Socket - 15A, NEMA 5-15R
R589.00
SKU
3504001
Manufacturer's Website
Description

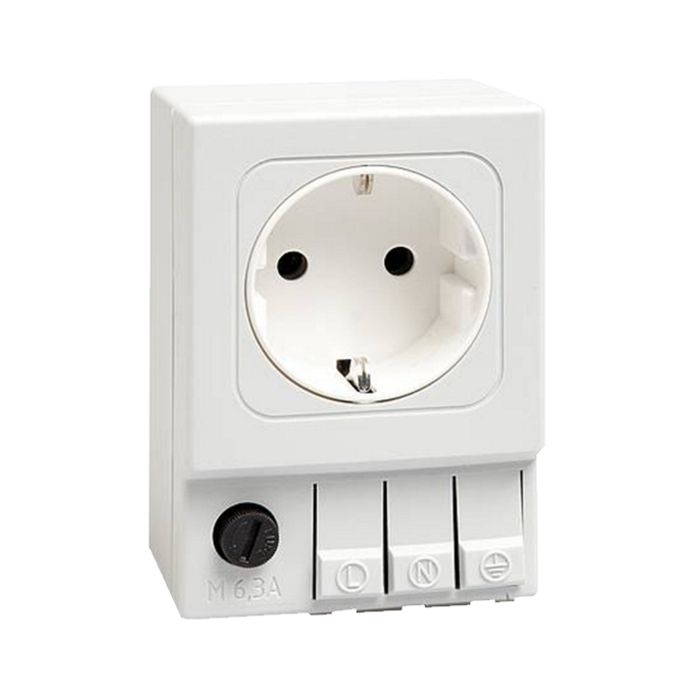

The Stego SD 035 Plug Socket - 15A, NEMA 5-15R has a DIN rail mounted electrical socket can be quickly fitted and connected in enclosures allowing the use of auxiliary products such as hand lamps, measuring devices, soldering irons etc. The unit is available with and without fuse and in many world socket standards.
Features
- Quickly connected
- Available with or without fuse
- Clip fixing
Specifications
| Model | Without fuse |
| Nominal Current | 15A |
| Operating Voltage Max. | 125V AC |
| Socket | NEMA 5-15R |
| Connection | 3 x pressure clamps for stranded and rigid wire 0.5 - 2.5mm2 |
| Mounting | Clip for 35mm DIN rail, EN 60715 |
| Casing | Plastic according to UL94 V-0, light grey |
| Dimensions | 92 x 62 x 48mm |
| Weight | Approx. 0.2kg |
| Fitting Position | Variable |
| Operating/Storage Temperature | -45 to +70 Degrees Celsius |
| Operating/Storage Humidity | Max. 90% RH (non-condensing) |
| Protection Type/Protection Class | IP20 / I (earthed) |
| Free Shipping | No |
|---|
