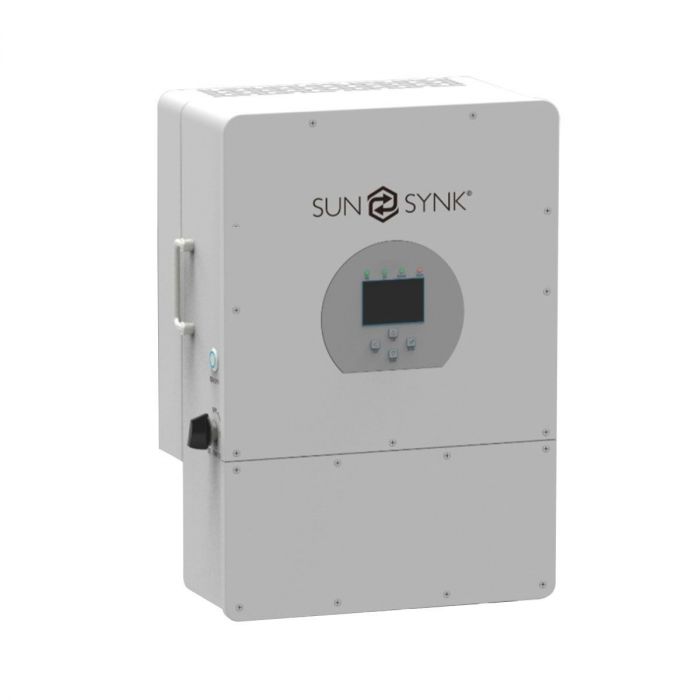

Sunsynk 3 Phase Hybrid Inverter with Wifi Dongle - 12kW/48V
R76,189.00
SKU
FBIHSK12K48P
- Visual power flow screen
- Auxiliary load function
- Easy and simple to understand LCD display
Description
The Sunsynk 3 Phase Hybrid Inverter with Wifi Dongle - 12kW/48V is a highly efficient power management tool that allows the user to hit those 'parity' targets by managing power-flow from multiple sources such as solar, mains power (grid) and generators, and then effectively storing and releasing power as and when utilities require.
Features
- Easy and simple to understand LCD display
- Supporting Wi-Fi or GSM monitoring
- Visual power flow screen
- Built-in 2 strings for 1 MPP tracker and 1 string for 1 MPP tracker
- Smart settable 3-stage MPPT charging for optimised battery performance
- Auxiliary load function
- Parallel (coming soon) / multi-inverter function: grid-tied and off-grid
Specifications
| Charge Mode | |
| Battery Voltage | 48V (40V60V) |
| Battery Current | 190A (max.) |
| AC Input Voltage | 3L/N/PE 220/380, 230/400V |
| AC Input Frequency | 50/60Hz |
| AC Input Rated Current | 12.1A |
| Max. AC Input Current | 18.2A (max.) |
| Max. AC Input Power | 8800W |
| Max. Apparent Output Power | 8800VA |
| PV Input Voltage | 440V (160V800V) |
| MPPT Input Voltage | 200 V 650V |
| PV Input Current | 13A + 13A |
| Max. PV Input Power | 10400W |
| Max. PV Isc | 17A + 17A |
| Utility-Interactive | |
| AC Output Voltage | 3L/N/PE 220/380, 230/400V |
| AC Output Frequency | 50/60Hz |
| AC Output Rated Current | 12.1A |
| Max. AC Output Current | 18.2A (max.) |
| Max. AC Output Power | 8800W |
| AC Output Rated Power | 8000W |
| AC Output Power Factor | 0.8 leading to 0.8 lagging |
| Max. AC Isc | 75A |
| Battery Discharge Voltage | 40V60V |
| Battery Discharge Current | 190A (max.) |
| Battery Discharge Power | 8000W |
| Stand Alone | |
| AC Output Voltage | 3L/N/PE 220/380, 230/400V |
| AC Output Frequency | 50/60Hz |
| AC Output Rated Current | 12.1A |
| AC Output Rated Power | 8000W |
| Max. Continuous AC | 45A |
| Battery Discharge Voltage | 40V60V |
| Max. Discharge Current | 190A (max.) |
| Compliance | C10-11, CEI 0-21, VDE-AR-N 4105, NRS 076, IEC 62116, IEC 61727, G99, G98, RD 1699, VDE 0126-1-1, IEC/EN 61000-6- 1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| Free Shipping | No |
|---|
