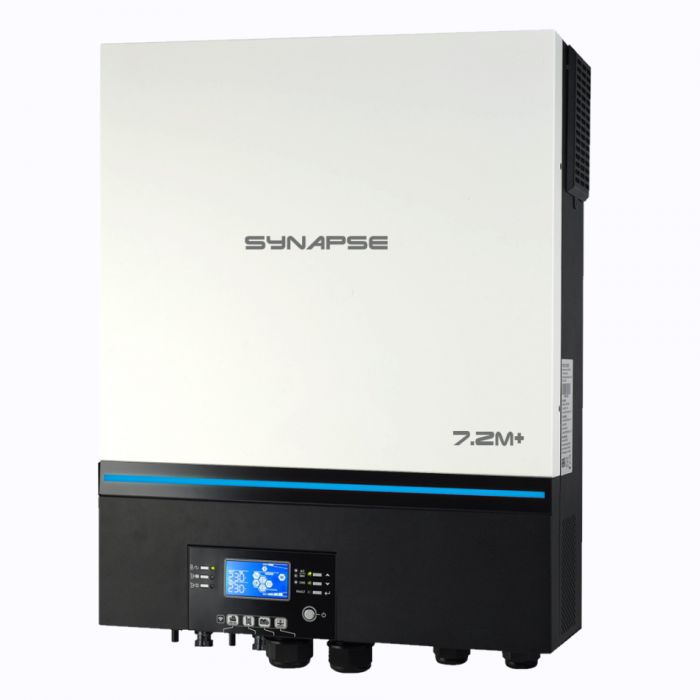

Synapse 7.2M+ Offgrid Inverter - 7.2kW, 48V DC, 8kW Dual MPPT

Description

The Synapse 7.2M+ Offgrid Inverter - 7.2kW, 48V DC, 8kW Dual MPPT is a high power, full-featured off-grid inverter. These inverters are equipped with a unique operating system, dual MPPT for solar applications and the ability to operate in parallel for higher power or 3 phase applications. In addition, there is an AC input that will allow your load to be powered by the grid when necessary and your battery bank to be charged by a grid or generator connection.

Please Note:

These units are not capable of feeding back into the grid. Perfect for a start-up system to reduce the effects of load shedding.

When using this inverter with Lithium batteries, care should be taken to correctly size the bank, taking into account the maximum current which this inverter requires VS what the battery can deliver. Maximum continuous current per inverter +-160A, max. peak current +-320A (depending on battery SOC / terminal voltage).

Features

• Pure Sine wave inverter
• Battery equalization function to optimize battery performance
• Assembled with an internal anti-dust kit for harsh environments

Specifications
