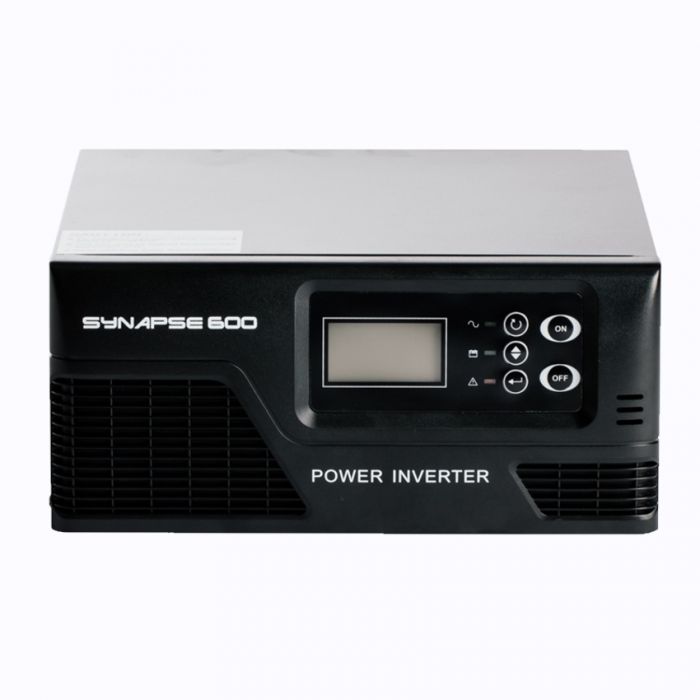

The Synapse UPS Inverter - 600W 12V DC, 230V AC is designed to work and protect electronic appliances and serves as a backup device in extremely hostile power environments. It comes with an AC input that allows the battery bank to be charged through the grid (cable included). An extra wide input AVR conserves battery for added security. Includes a multi-stage surge suppressor which can protect from surges and spikes.
Please Note:
The UPS unit does not come with Solar capabilities.
Fan is very loud and comes on frequently, generally during charge
Inverter Output | |
Default Battery System Voltage | 12V DC |
Rated Power | 600w |
Surge Rating (20ms) | 1800w |
Waveform | Pure Sine Wave |
Rated Output Voltage Inverter | 230V AC (+/- 2% RMS), AVR 195V AC - 245V AC |
Inverter Efficiency (Peak) | >75% |
Bypass Efficiency | >95% |
Output Transfer Time | Typical: 6ms 10ms (Max) |
Battery | |
Minimum Start Voltage | Low Battery Voltage Cutoff +0,5V |
Low Battery Alarm | Low Batter Voltage Cutoff +1V |
Low Battery Cuttoff | 10-12V DC |
High Battery Cutoff | Nominal Voltage +0,5V |
AC Charge | |
Floating Voltage | 13,5 / 13,6 / 13,7V DC |
Nominal Voltage | 13.8 -14,5V |
Maximum Charge Current | 600W |
Bypass & Protection | |
Input Waveform | Pure Sine Wave |
Input Frequency | 50Hz or 60Hz |
Low Frequency Trip | 45+ / -0.2Hz |
Low Frequency Trip | 65+ /0.2Hz |
Overload Protection | 110% 125% R Load fault after 30S 125% 150% R Load fault after 3s > 150% R Load fault after 500ms |
Over Temperature Protection | > 90C |
Bypass Output Protection | 10A 250V AC |
Output Circuit Protection | YES |
Mechanical Specification | |
Dimensions | 385 x 325 x 190mm |
Weight | 8kg |
Shipping Dimensions | 420 x 385 x 225mm |
