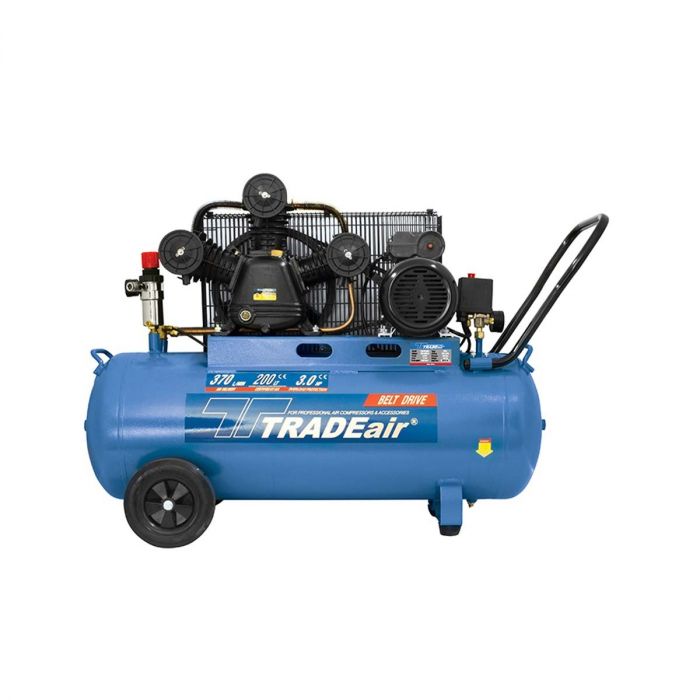

Trade Professional Belt Drive Air Compressor - 200L, 3 HP
R16,819.00
SKU
MCFRC229
Shipping restrictions apply.
Description
The Trade Professional Belt Drive Air Compressor - 200L, 3 HP is a high-performance belt driven compressor ideal for powering commonly used air tools and spray equipment, that features a vertical head pump configuration which delivers class-leading air output, ideal for industrial use. It is oil lubricated for a longer lifespan.
This model is fitted with a double pulley system, long reach handle, overload motor protection with manual reset, pressure regulator and pressure gauge. This model is equipped with 3-cylinder W style cast iron heads, cast iron manifold with quick couplers, and a fully enclosed belt guard.
Features
- Fully enclosed belt guard
- AIA approved
- CE Approved air tanks
- W style cast iron heads
- Dual outlet with quick connectors
- Motor with manual overload protector
- Wheels and transport handle
Specifications
| Tank Capacity (L) | 200 |
| Motor Capacity (kW) | 2.2 |
| RPM | 2850 |
| Voltage (V) | 230 - 50 |
| Maximum Pressure (kPa / Bar) | 800 / 8 |
| Free Air Delivery at 700Kpa (L/min) | 265 |
| Piston Displacement (L/min) | 370 |
| Manual thermal protector on motor | 9.4 CFM at 7 Bar |
| Noise Level (dB) | 95 |
| Dimensions (mm) | 1350 x 1015 x 490 |
| Free Shipping | No |
|---|
