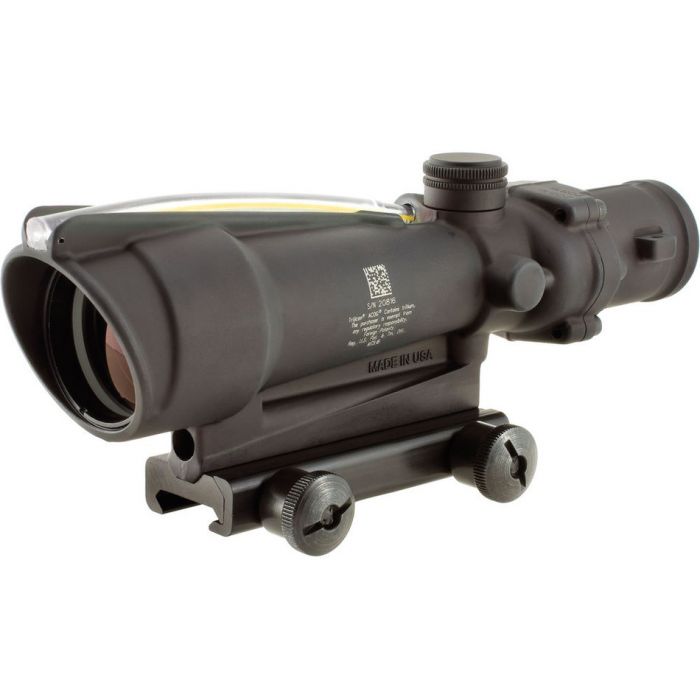

The Trijicon ACOG 3.5x35 BAC Riflescope - Dual Red Chevron M193 Reticle, Black provides a dual-illuminated reticle using fibre optics and tritium for a bright aiming point in any light condition. The ranging reticle is calibrated for M193 ammunition (5.56, 55gr FMJ, common military surplus) fired from a 16" barrel. The chevron reticle is designed to be zeroed using the tip at 100 meters and the BDC goes out to 800 meters. The width of the chevron at the base is 5.5 MOA which represents 19 at 300 meters. This allows range estimation for silhouette targets.
Length x Width x Height | 203.2mm x 53.34mm x 73.66mm |
Weight | 17.6 oz. (498.95g) |
Magnification | 3.5x |
Objective Size | 35mm |
Reticle Pattern | Chevron |
Day Reticle Colour | Red |
Night Reticle Colour | Red |
Bullet Drop Compensating (BDC) | Yes |
Calibre | M193 (5.56) |
Bindon Aiming Concept (BAC) | Yes |
Illumination Source | Fibre Optics & Tritium |
Power Source | Fibre Optics & Tritium |
Adjustment | 1/2 MOA per click |
Eye Relief | 2.39 in. (60.71mm) |
Exit Pupil | 0.39 in. (9.91mm) |
Field Of View | 5.5-Degrees |
Field Of View (Feet) | 28.9 ft. @ 100 yds. (9.63m @ 100m) |
Mount | Flattop Thumbscrew Mount (TA51) |
Housing Material | Forged Aluminium |
Finish | Matte Black |
Free Shipping | No |
---|
