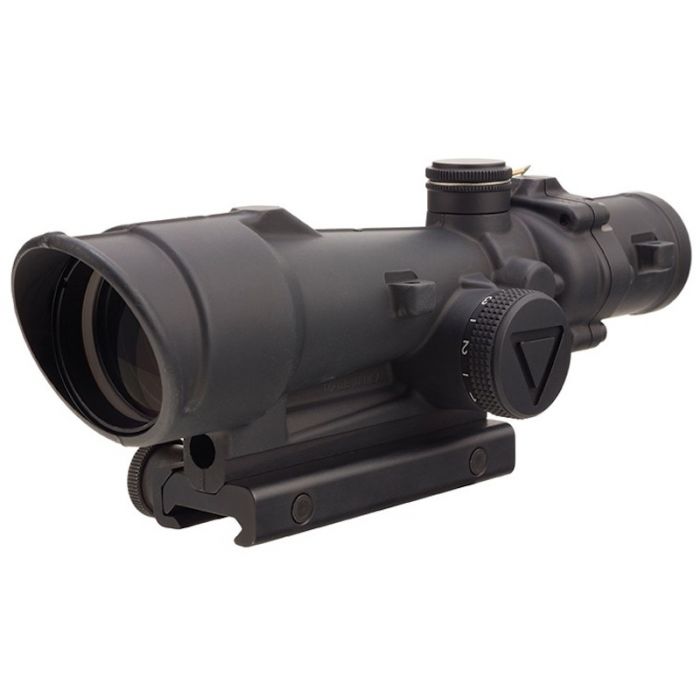

From the legendary ACOG family of products, the Trijicon ACOG 3.5x35 LED Illuminated Riflescope - Green Horseshoe/Dot Reticle, .223/5.56 BDC, TA51 Mount is the first to offer user-selectable brightness controls. Users can select from six adjustable brightness levels with an "off" between each setting, allowing the operator to determine how much to illuminate the reticle - even in transitional lighting. Powered by a single AA battery, the LED ACOG can run for over 12 000 continuous hours (on setting 4).
Like all ACOG models, it is forged from rugged 7075-T6 aircraft-aluminium, resulting in a nearly indestructible sighting system and electronics that offer outstanding reliability. Users can select multiple bullet drop compensating and ranging reticle options. Fully night vision device compatible, the Trijicon 3.5x35 LED ACOG is also compatible with most other 3.5x35 ACOG accessories available.
Length X Width X Height | 203.2mm x 76.2mm x 66.04mm |
Weight | 20.8 oz. (589.67g) |
Magnification | 3.5x |
Objective Size | 35mm |
Reticle Pattern | Horseshoe Dot |
Day Reticle Colour | Green |
Night Reticle Colour | Green |
Bullet Drop Compensating (BDC) | Yes |
Calibre | .223 / 5.56 |
Bindon Aiming Concept (BAC) | Yes |
Illumination Source | LED |
Illumination Settings | 6 |
Power Source | AA Lithium or Alkaline Battery |
Battery Life | Over 12 000 hours on setting 4 using supplied alkaline battery at 21 deg C (70 deg F) |
Adjustment | 1/2 MOA per click |
Adjustment Range | 40 MOA Total Travel |
Eye Relief | 2.4 in. (60.96mm) |
Exit Pupil | 0.39 in. (9.91mm) |
Field Of View (Degrees) | 5.5-Degrees |
Field Of View (Feet) | 28.9 ft. @ 100 yds. (9.63m @ 100m) |
Mount | Flattop Thumbscrew Mount (TA51) |
Housing Material | Forged Aluminium |
Finish | Matte Black |
Free Shipping | No |
---|
