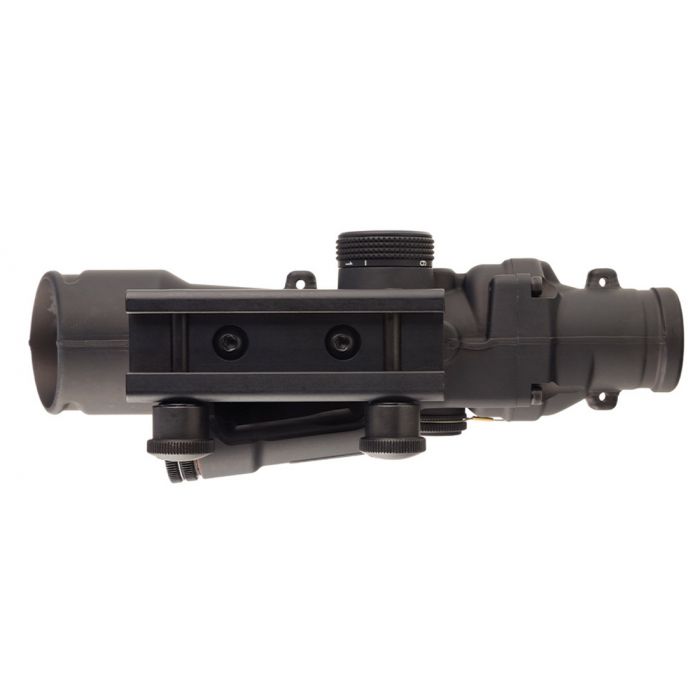

Dominate the battlefield with the Trijicon ACOG 3.5x35 LED Riflescope - .223/5.56 BDC, Black. This battle-ready optic will help increase the success rate of your mission while withstanding the most hostile environments and adverse weather conditions. It is built as a rugged riflescope for close quarters combat (CQC). Its optical system is optimized for the cause by giving you a notable 3.5x magnification with a 35mm objective lens.
The fully multi-coated optics, manufactured from high-quality optical glass, are designed to improve light transmission, reduce image distortion, and deliver the best possible visibility in most situations. For engaging targets quickly and accurately, this gun sight is equipped with a brilliant red .223 Horseshoe reticle that offers an LED-based illumination system and brightness control.
To help you manage wind drifts and ballistics, the scope has 40 MOA wind age and elevation adjustments with a 1/2 MOA impact point correction. Forged from a single piece of 7075-T6 aluminium alloy, the main tube is exceptionally durable, fog proof, and waterproof (submersible to 66'). It features a hard anodizing finish, tethered adjustment and battery caps, and an eyepiece with a zoom lever to provide a slip-free operation. The Picatinny flattop thumbscrew mount provides unparalleled strength and durability to the overall construction.
Dimensions (Length X Width X Height) | 203.2mm x 76.2mm x 66.04mm (8 in x 3 in x 2.6 in) |
Weight | 20.8 oz. (589.67g) |
Magnification | 3.5x |
Objective Size | 35mm |
Reticle Pattern | Horseshoe Dot |
Day Reticle Colour | Red |
Night Reticle Colour | Red |
Bullet Drop Compensating (BDC) | Yes |
Calibre | .223 / 5.56 |
Bindon Aiming Concept (BAC) | Yes |
Illumination Source | LED |
Illumination Settings | 6 |
Power Source | AA Lithium or Alkaline Battery |
Battery Life | Over 12,000 hours on setting 4 using supplied alkaline battery at 21 deg C (70 deg F) |
Adjustment | 1/2 MOA per click |
Adjustment Range | 40 MOA Total Travel |
Eye Relief | 60.96mm (2.4 in) |
Exit Pupil | 9.91mm (0.39 in) |
Field Of View (Degrees) | 5.5 |
Field Of View | 9.63m @ 100m (28.9 ft. @ 100 yds) |
Mount | Flattop Thumbscrew Mount (TA51) |
Housing Material | Forged Aluminium |
Finish | Matte Black |
Free Shipping | No |
---|
