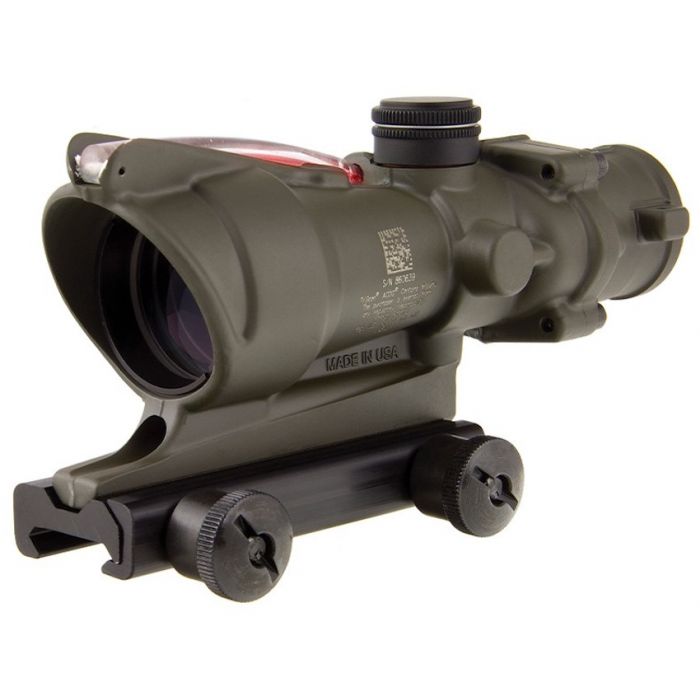

The Trijicon ACOG 4x32 BAC Dual Illuminated Riflescope - .223/5.56, BDC Red Chevron Reticle, Thumbscrew Mount, OD Green is designed to be zeroed using the tip at 100 meters. The width of the chevron at the base is 5.53 MOA which is 19 in. at 300 meters. This allows range estimation for silhouette targets. Features dual illumination (Fibre optics provides daylight illumination and tritium illuminates reticle at night). The ranging reticle is calibrated for 5.56(.223 CAL) flattop rifles out to 800 meters.
Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements. Exceptional waterproof performance that exceeds military standards. Dry nitrogen-filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with a dry-nitrogen filled housing that mitigates fogging.
Weight | 15.1 oz. (428.08g) |
Magnification | 4x |
Objective Size | 32mm |
Reticle Pattern | Chevron |
Day Reticle Colour | Red |
Night Reticle Colour | Red |
Bullet Drop Compensating (BDC) | Yes |
Calibre | .223 / 5.56 |
Bindon Aiming Concept (BAC) | Yes |
Illumination Source | Fibre Optics & Tritium |
Power Source | Fibre Optics & Tritium |
Eye Relief | 1.5 in. (38.1mm) |
Exit Pupil | 0.32 in. (8.13mm) |
Field Of View | 7-Degrees |
Field Of View (feet) | 36.8 ft. @ 100 yds. (12.27m @ 100m) |
Mount | Flattop Thumbscrew Mount (TA51) |
Housing Material | Forged Aluminium |
Finish | OD Green |
Free Shipping | No |
---|
