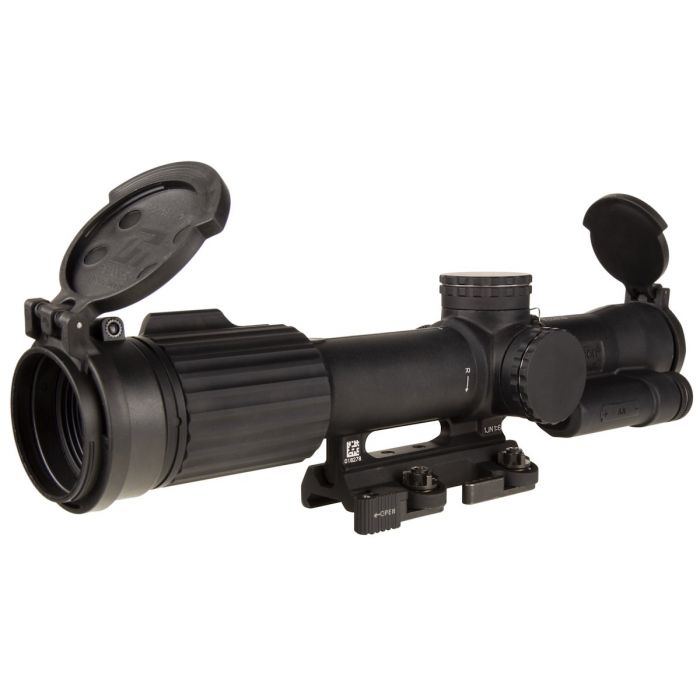

The Trijicon VCOG 1-8x28 Riflescope - SCO Red MRAD Tree Reticle, Black Commercial SCO is a highly rugged, variable magnification riflescope designed for close quarter battle (CQB) and long distance marksmanship. This offering is functionally identical to the USMC Squad Common Optic (SCO) VCOG. With a forged aircraft-grade 7075-T6 aluminium housing, the VCOG is nearly indestructible.
Superior glass provides exceptional clarity and colour with zero distortion. The universal segmented circle / MRAD crosshair dot with wind holds reticle is designed for multi-platform use, accommodating multiple calibers, ammunition weights, and barrel lengths. The first focal plane reticle allows subtensions and drops to remain true at any magnification, allowing the shooter to quickly and accurately apply the correct hold.
With ruggedised electronics, the LED reticle is robust enough for any application. Powered by a lithium AA battery (provided), the 1-8x28 VCOG offers a battery life of 633 hours at setting 6. Choose from 11 user-selectable brightness settings, 2 night vision settings, 8 day settings, and 1 super-bright setting. An integrated dial fin allows easy rotation through the magnification range, and a near-constant eye relief means no head or stock position adjustments are needed. Waterproof to 20 meters (66 ft.).
Length X Width X Height | 277.62mm x 73.91mm x 71.12mm |
Weight | 32 oz. (907.18g) |
Magnification | 1-8x |
Objective Size | 28mm |
Reticle Pattern | Segmented Circle / Crosshair with Wind Holds |
Day Reticle Colour | Red |
Night Reticle Colour | Red |
Focal Plane | First |
Bindon Aiming Concept (BAC) | Yes |
Illumination Source | LED |
Illumination Settings | 11 Total Settings: 2 Night Vision, 8 Day, and 1 Super-Bright Setting |
Power Source | AA Lithium or Alkaline Battery |
Battery Life | 633 hours (26.4 days) at setting 6 |
Adjustment | 0.1 MRAD per click |
Adjustment Range | 35 MRAD |
Eye Relief | 4 in. (101.6mm) |
Exit Pupil | 0.41 in. - 0.14 in. (10.41mm - 3.56mm) |
Field Of View (Degrees) | 20 - 2.5-Degrees |
Field Of View (Feet) | 109.2 ft. - 13.1 ft. @ 100 yds. (36.4 - 4.37m @ 100m) |
Mount | Larue Tactical LT799 Mount |
Housing Material | 7075-T6 forged aluminium |
Finish | Matte Black |
Submersion Depth | 66 ft. (20m) |
Operating Temperature | -25F to 140F (-31.67c to 60c) |
