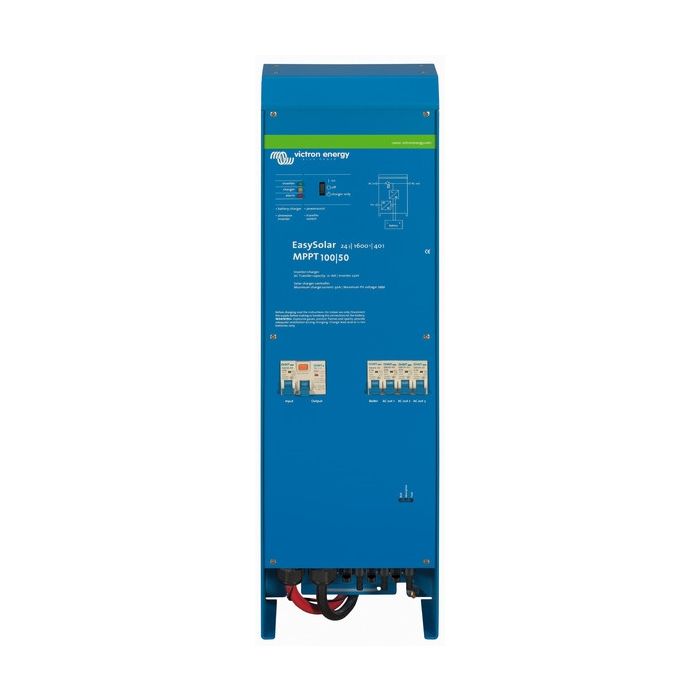

Victron EasySolar All-In-One Solar Power Solution - 12/1600 - 70-16

Be the first to review this product

R26,959.00

SKU

3800700034

All-in-one solar power solution AC distribution PowerAssist Unique solar application software

Shipping restrictions apply.

Safe & Secure Shopping

Satisfaction Guaranteed

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Please Note: Victron products are, according to the Victron supplier of South Africa, only to be supplied to installers with professional Victron training. Unfortunately we are prohibited from selling Victron products to customers who do not meet these requirements. For further information please contact Victron at: [email protected]

Manufacturer's Website

Description

The Victron EasySolar All-In-One Solar Power Solution combines an MPPT Solar Charge Controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring. Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed. Several software programs (Assistants) are available to configure the system for various grid-interactive or stand-alone applications.

Please Note: All Victron units are for use in photovoltaic systems only. These inverters are not 'plug and play', as you cannot plug these units directly into a standard wall socket. This unit should only be installed by professionals, please contact a registered/certified installer for help.

Features

All-in-one solar power solution
The solar charge controller: Blue Solar MPPT 100/50
The inverter/charger: MultiPlus Compact 12/1600/70 or 24/1600/40
AC distribution
PowerAssist
Unique solar application software

Specifications

Inverter/Charger
Transfer switch	16 A
INVERTER
Input voltage range	9,5 – 17 V
‘Heavy duty’ output AC 0	16 A
Output AC	Output voltage: 230 VAC ± 2%, Frequency: 50 Hz ± 0,1%
Cont. output power at 25 °C	1600 VA / 1300 W
Cont. output power at 40 °C	1200 W
Peak power	3000 W
Maximum efficiency	92%
Zero load power	8 W
Zero load power in search mode	2 W
CHARGER
AC Input	Input voltage range: 187-265 VAC, Input frequency: 45 – 65 Hz Power factor: 1
Charge voltage 'absorption'	14,4 V
Charge voltage 'float'	13,8 V
Storage mode	13,2 V
Charge current house battery	70 A
Charge current starter battery (A)	4
Battery temperature sensor	yes
Programmable relay (5)	yes
Protection (2)	a - g
Solar Charge Controller
Model	MPPT 100/50
Maximum output current	50 A
Maximum PV power	700 W
Maximum PV open circuit voltage	100 V
Maximum efficiency	98%
Self-consumption	10 mA
Charge voltage 'absorption', default setting	14,4 V
Charge voltage 'float', default setting	13,8 V
Charge algorithm	multi-stage adaptive
Temperature compensation	-16 mV / °C
Protection	a - g
COMMON CHARACTERISTICS
Operating temp. range	-20 to +50 °C (fan assisted cooling)
Humidity (non-condensing)	max 95%
ENCLOSURE
Material & Colour	aluminium (blue RAL 5012)
Protection category	IP 21
Battery-connection	Battery cables of 1.5 meter
PV connection	Three sets of MC4 (PV-ST01) PV connectors.
230 V AC-connection	G-ST18i connector
Weight	15 kg
Dimensions	745 x 214 x 110 mm
STANDARDS
Safety	EN 60335-1, EN 60335-2-29, EN 62109
Emission / Immunity	EN 55014-1, EN 55014-2, EN 61000-3-3
Automotive Directive	2004/104/EC
