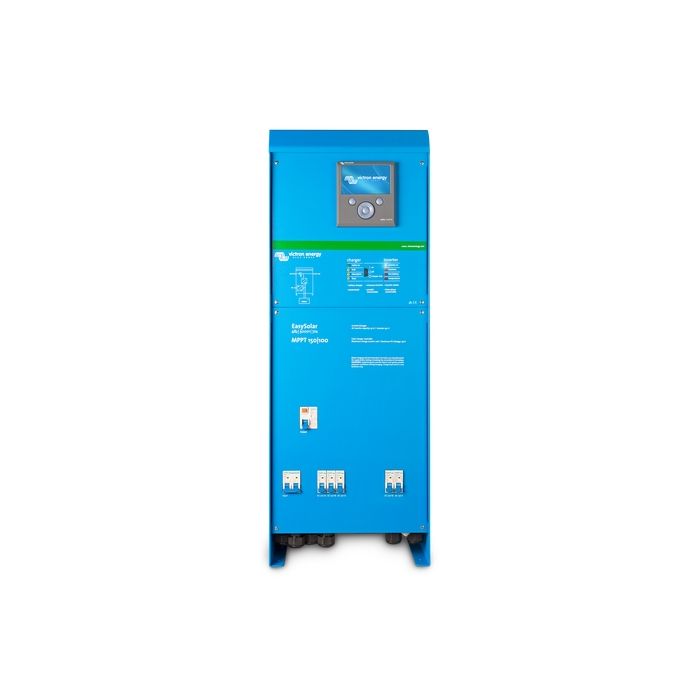

Victron EasySolar All-In-One Solar Power Solution - 48/5000 - 70-100

Be the first to review this product

R54,799.00

SKU

3800700038

The all-in-one solar power solution Colour Control panel AC distribution PowerAssist Unique solar application software

Shipping restrictions apply.

Safe & Secure Shopping

Satisfaction Guaranteed

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Please Note: Victron products are, according to the Victron supplier of South Africa, only to be supplied to installers with professional Victron training. Unfortunately we are prohibited from selling Victron products to customers who do not meet these requirements. For further information please contact Victron at: [email protected]

Manufacturer's Website

Description

The Victron EasySolar All-In-One Solar Power Solution combines an MPPT Solar Charge Controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring. Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed. Several software programs (Assistants) are available to configure the system for various grid-interactive or stand-alone applications.

Please Note: All Victron units are for use in photovoltaic systems only. These inverters are not 'plug and play', as you cannot plug these units directly into a standard wall socket. This unit should only be installed by professionals, please contact a registered/certified installer for help.

Features

The all-in-one solar power solution
Colour Control panel
AC distribution
PowerAssist
Unique solar application software

Specifications

INVERTER/CHARGER
Transfer Switch	100 A
INVERTER
Input Voltage Range	38 – 66 V
‘Heavy Duty’ Output AC 0	16 A
Output AC	Output voltage: 230 VAC ± 2%, Frequency: 50 Hz ± 0,1%
Cont. Output Power at 25 °C	5000 VA / 4000 W
Cont. Output Power at 40 °C	3700 W
Peak Power	10000 W
Maximum Efficiency	95%
Zero Load Power	35 W
Zero Load Power in Search Mode	15 W
CHARGER
AC Input	Input voltage range: 187-265 VAC, Input frequency: 45 – 65 Hz Power factor: 1
Charge Voltage 'Absorption'	57,6 V
Charge Voltage 'Float'	55,2 V
Storage Mode	52,8 V
Charge Current House Battery	70 A
Battery Temperature Sensor	yes
Programmable Relay (5)	yes
Protection (2)	a - g
Solar Charge Controller
Model	MPPT 150/100-MC4
Maximum Output Current	100 A
Maximum PV Power	5800 W
Maximum PV Open Circuit Voltage	150 V
Maximum Efficiency	98%
Self-Consumption	10 mA
Charge Voltage 'Absorption', Default Setting	57,6 V
Charge Voltage 'Float', Default Setting	55,6 V
Charge Algorithm	multi-stage adaptive
Temperature Compensation	-64 mV / °C
Protection	a - g
COMMON CHARACTERISTICS
Operating Temp. Range	-40 to +65 °C (fan assisted cooling)
Humidity (Non-Condensing)	max 95%
ENCLOSURE
Material & Colour	aluminium (blue RAL 5012)
Protection Category	IP 21
Battery-Connection	Four M8 bolts (2 plus and 2 minus connections)
PV Connection	Three sets of MC4 PV connectors
230 V AC-Connection	Screw terminals 13 mm2 (6 AWG)
Weight	48 kg
Dimensions	877 x 328 x 241 mm
STANDARDS
Safety	EN 60335-1, EN 60335-2-29, EN 62109-1
Emission / Immunity	EN 55014-1, EN 55014-2, EN 61000-3-3, EN 61000-6-3, EN 61000-6-2, EN 61000-6-1
