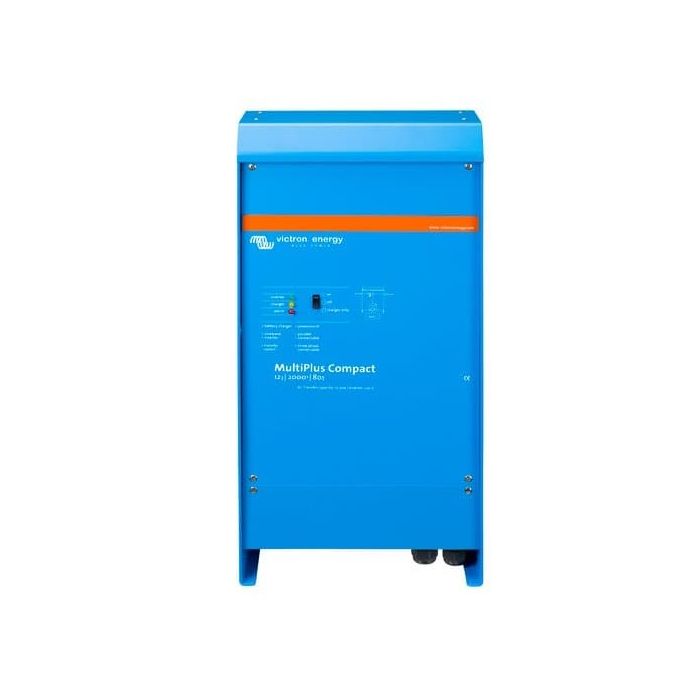

Victron Energy 12/2000-80-30 MultiPlus Compact Inverter/Charger - 2000W
R32,619.00
SKU
3800700022
Shipping restrictions apply.
Manufacturer's Website
Description
The Victron Energy 12/2000-80-30 MultiPlus Compact Inverter/Charger - 2000W is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.
Features
- Unique Power Assist feature
- Remote Monitoring and Control
- Proven reliability
- Virtually unlimited power thanks to parallel operation
- High start-up power
Specifications
| Model | 12/2000-80-30 | |
| Power Control | Yes | |
| Power Assist | Yes | |
| Transfer Switch | 30A | |
| Inverter | ||
| Input Voltage Range (V Dc) | 9,5 17 V | |
| Output Voltage | 230 VAC 2% | |
| Output Frequency | 50 Hz 0,1% (1) | |
| Cont. Output Power At 25C (3) | 2000VA | |
| Cont. Output Power At 25C | 1600W | |
| Cont. Output Power At 40C | 1400W | |
| Cont. Output Power At 65C | 10000W | |
| Peak Power | 4000W | |
| Maximum Efficiency | 93 / 94 | |
| Zero Load Power | 9/11 W | |
| Zero Load Power In Search Mode | 93/ 94 W | |
| Charger | ||
| Ac Input Voltage Range | 187-265VAC | |
| Ac Input Frequency | 45 65 Hz | |
| Ac Input Power Factor | 1 | |
| Charge Voltage 'Absorption' (Dc) | 14,4V / 28,8V / 57,6V | |
| Charge Voltage 'Float' (Dc) | 13,8V / 27,6V / 55,2V | |
| Storage Mode (Dc) | 13,2V / 26,4V / 52,8V | |
| Charge Current House Battery (4) | 80/50 | |
| Charge Current Starter Battery (A) | 1A (12 V and 24 V models only) | |
| Battery Temperature Sensor | Yes | |
| General | ||
| Programmable Relay (6) | Yes | |
| Protection (2) | a - g | |
| Ve.Bus Communication Port | For parallel and three-phase operation, remote monitoring and system integration | |
| Remote On-Off | Yes | |
| Common Characteristics Operating Temp. Range | -40 to +65 degree Celsius (fan assisted cooling) Humidity (non-condensing): max 95% | |
| Dip Switches | Yes (6) | |
| Internal Dc Fuse | 150 / 80 / 40 A | |
| Enclosure | ||
| Material And Colour | Aluminium (blue RAL 5012) | |
| Protection Category | IP 21 | |
| 230 V Ac-Connection | Spring Clamp | |
| Weight | 12 kg | |
| Standards | ||
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1 | |
| Emission, Immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 | |
| Road Vehicles | ECE R10-4 |
| Free Shipping | No |
|---|
