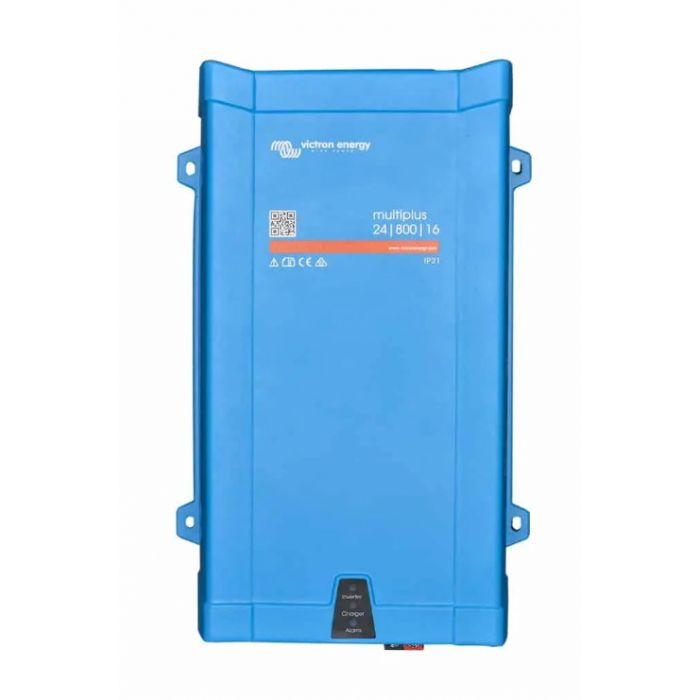

Victron Energy 24/800-16-16 MultiPlus Inverter/Charger - 800W
R10,359.00
SKU
3800700024
Input voltage range MutiPlus (V DC): 9,5 – 17 V
Cont. Output power (VA): 800 VA
Peak power (W): 1,600 W
Transfer switch (A): 16 A
Description
The Victron Energy 24/800-16-16 MultiPlus Inverter/Charger - 800W, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid Power Assist technology, plus multiple system integration features.
Features
- Unique Power Assist feature
- Charger input voltage range of 187 to 265VAC
- Uninterrupted AC power (UPS function)
- Virtually unlimited power thanks to parallel operation
- Remote Monitoring and Control
- Input voltage range of 9.5V to 17V
Specifications
| Model | 24/800VA - 16-16 | |
| Power Control | Yes | |
| Power Assist | Yes | |
| Transfer Switch | 16A | |
| Inverter | ||
| Input voltage range (V DC) | 9,5 17 V | |
| Output Voltage | 230 VAC 2% | |
| Output Frequency | 50 Hz 0,1% (1) | |
| Cont. Output Power at 25C (3) | 800VA | |
| Cont. Output Power at 25C | 700W | |
| Cont. Output Power at 40C | 650W | |
| Cont. Output Power at 65C | 400W | |
| Peak Power | 1600W | |
| Maximum Efficiency | 92 / 93 / 94% | |
| Zero Load Power | 7 / 7 / 8 W | |
| Zero Load Power in Search Mode | 2 / 2 / 3 W | |
| Charger | ||
| AC Input voltage range | 187-265VAC | |
| AC Input frequency | 45 65 Hz | |
| AC Input Power factor | 1 | |
| Charge Voltage 'Absorption' (DC) | 14,4V / 28,8V / 57,6V | |
| Charge voltage 'Float' (DC) | 13,8V / 27,6V / 55,2V | |
| Storage mode (DC) | 13,2V / 26,4V / 52,8V | |
| Charge Current House Battery (4) | 35 / 16 / 9 A | |
| Charge Current Starter Battery (A) | 1A (12 V and 24 V models only) | |
| Battery Temperature Sensor | Yes | |
| General | ||
| Programmable Relay (6) | Yes | |
| Protection (2) | a - g | |
| VE.Bus Communication Port | For parallel and three-phase operation, remote monitoring and system integration | |
| Remote On-Off | Yes | |
| Common Characteristics Operating Temp. Range | -40 to +65 degree Celsius (fan assisted cooling) Humidity (non-condensing): max 95% | |
| DIP Switches | Yes (6) | |
| Internal DC fuse | 150 / 80 / 40 A | |
| Enclosure | ||
| Material and Colour | Aluminium (blue RAL 5012) | |
| Protection Category | IP 21 | |
| Battery-Connection | 25 / 16 / 10 mm squared | |
| 230 V AC-Connection | G-ST18i connector | |
| Weight | 6,4 kg | |
| Dimensions | 360mm x 240mm x 100mm (H x W x D) | |
| Standards | ||
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1 | |
| Emission, Immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 | |
| Road Vehicles | ECE R10-5 |
