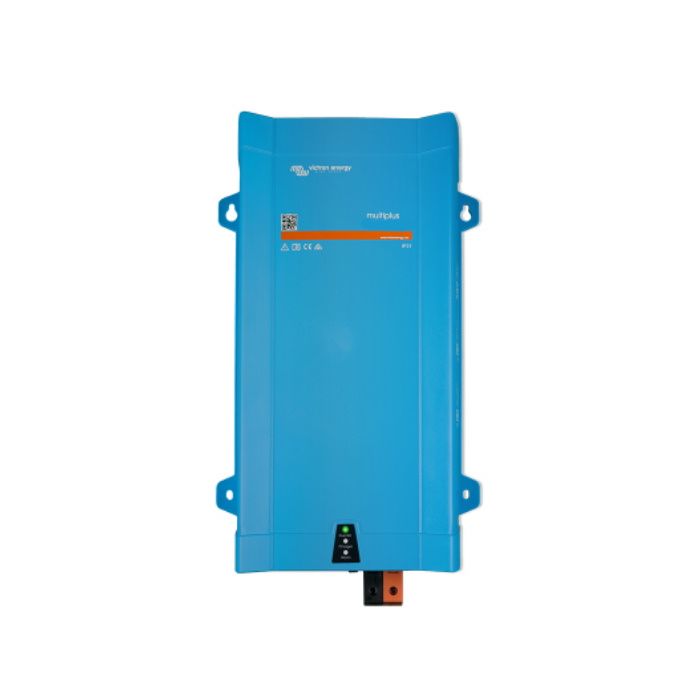

Victron Energy 48/500/6 - 16 MultiPlus Inverter/Charger - 500W
R8,439.00
SKU
3800700028
Input voltage range MutiPlus (V DC): 9,5 – 17 V 19 – 33 V 38 – 66 V
Cont. output power (VA): 500VA
Peak power (W): 900W
Transfer switch (A): 16A
Description
The Victron Energy 48/500/6 - 16 MultiPlus Inverter/Charger - 500W, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid Power Assist technology, plus multiple system integration features.
Features
- Unique Power Assist feature
- Charger input voltage range of 187 to 265VAC
- Uninterrupted AC power (UPS function)
- Virtually unlimited power thanks to parallel operation
- Remote Monitoring and Control
- Input voltage range of 9.5V to 17V
Specifications
| Model | 48/500/6-16 |
| Power Control | No |
| Power Assist | No |
| Three Phase and Parallel Operation | Yes |
| Transfer Switch | 16A |
| Inverter | |
| Input voltage range (V DC) | 9,5 17 V 19 33 V 38 66 V |
| Output Voltage | 230VAC 2% |
| Output Frequency | 50Hz 0,1% (1) |
| Cont. Output Power at 25C (3) | 500VA |
| Cont. Output Power at 25C | 430W |
| Cont. Output Power at 40C | 300W |
| Cont. Output Power at 65C | 3000W |
| Peak Power | 900W |
| Maximum Efficiency | 90 / 91 / 92% |
| Zero Load Power | 6 / 6 / 7W |
| Zero Load Power in Search Mode | 2 / 2 / 3 W |
| Charger | |
| AC Input voltage range | 187-265VAC |
| AC Input frequency | 45 65 Hz |
| AC Input Power factor | 1 |
| Charge Voltage 'Absorption' (DC) | 14,4V / 28,8V / 57,6V |
| Charge voltage 'Float' (DC) | 13,8V / 27,6V / 55,2V |
| Storage mode (DC) | 13,2V / 26,4V / 52,8V |
| Charge Current House Battery (4) | 20 / 10 / 6 A |
| Charge Current Starter Battery (A) | 1A (12 V and 24 V models only) |
| Battery Temperature Sensor | Yes |
| General | |
| Programmable Relay (5) | Yes |
| Protection (2) | a - g |
| VE.Bus Communication Port | For parallel and three-phase operation, remote monitoring and system integration (RJ45-splitter ASS030065510 needed for 500 / 800 / 1200 VA models)system integration |
| Remote On-Off | On/off/charger only |
| DIP Switches | Yes (6) |
| Internal DC Fuse | 125 / 60 /30 A |
| Common Characteristics Operating Temp. Range | -40 to +65 degree Celsius (fan assisted cooling) Humidity (non-condensing): max 95% |
| Enclosure | |
| Material and Colour | Steel/ABS (blue RAL 5012) |
| Protection Category | IP 21 |
| Battery-Connection | 16 / 10 / 10 mm |
| 230 V AC-Connection | G-ST18i connector |
| Weight | 4,4kg |
| Dimensions | 311mm x 182mm x 100mm (H x W x D) |
| Standards | |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1 |
| Emission, Immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
| Road Vehicles | ECE R10-5 |
| Free Shipping | No |
|---|
