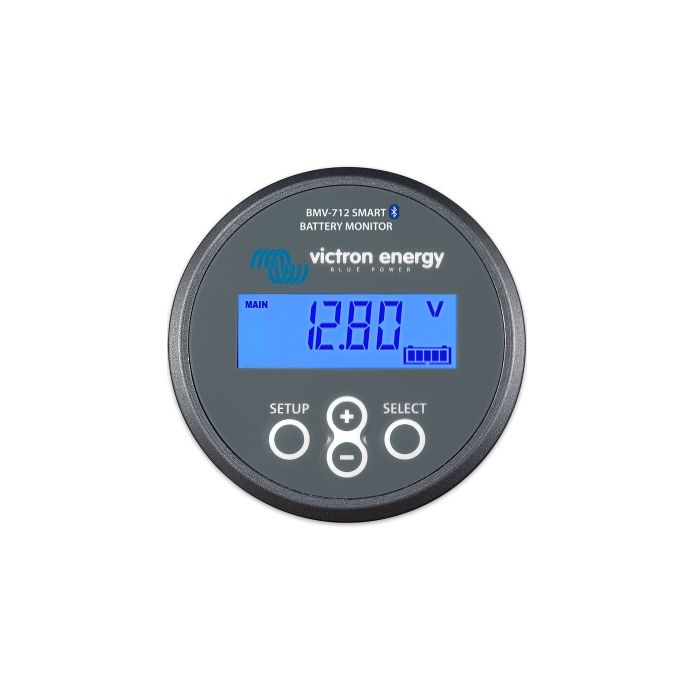

Victron Energy BMV-712 Smart Battery Monitor
R5,119.00
SKU
3800700047
Bluetooth built-in
Easy to install
Midpoint voltage monitoring
Very low current draw from the battery
Manufacturer's Website
Description
With Bluetooth built-in, the Victron Energy BMV-712 Smart Battery Monitor is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance.
Features
- Bluetooth built-in
- Easy to install
- Midpoint voltage monitoring
- Very low current draw from the battery
- Bi-stable alarm relay
- Ve.direct communication port
- Battery voltage, current, power, ampere-hours consumed and state of charge
- Programmable visual and audible alarm
- Programmable relay, to turn off non-critical loads or to run a generator when needed
Specifications
| Battery Monitor | BMV-712 Smart |
| Supply Voltage Range | 6.5 - 70 VDC |
| Current Draw, Back Light Off | 1 mA |
| Input Voltage Range, Auxiliary Battery | 6.5 - 70 VDC |
| Battery Capacity (Ah) | 1 - 9999 Ah |
| Operating Temperature Range | -40 +50 C (-40 120 F) |
| Measures Voltage Of Second Battery, Or Temperature, Or Midpoint | Yes |
| Temperature Measurement Range | -20 +50 C |
| Ve.Direct Communication Port | Yes |
| Bistable Relay | 60V / 1A normally open (function can be inverted) |
| Resolution & Accuracy (With A 500 A Shunt) | |
| Current | 0.01 A |
| Voltage | 0.01 V |
| Amp Hours | 0.1 Ah |
| State Of Charge | (0 100%) 0.1 % |
| Time To Go | 1 min |
| Temperature | (0 - 50C or 30 - 120F) 1 C/F |
| Accuracy Of Current Measurement | 0.4 % |
| Accuracy Of Voltage Measurement | 0.3 % |
| Installation & Dimensions | |
| Installation | Flush mount |
| Front | 63mm diameter |
| Front Bezel | 69 x 69mm (2.7 x 2.7 inch) |
| Shunt Connections Bolts | M10 (0.3937 inch) |
| Body Diameter And Depth | 52 mm (2.0 inch) and 31 mm (1.2 inch) |
| Protection Category | IP55 (not intended for outdoor use) |
| Standards | |
| Safety | EN 60335-1 |
| Emission / Immunity | EN 55014-1 / EN 55014-2 |
| Automotive | ECE R10-4 / EN 50498 |
| Accessories | |
| Shunt (Included) | 500 A / 50 mV |
| Cables (Included) | 10 meter 6 core UTP with RJ12 connectors, and cable with 1Amp slow blow fuse for + connection |
| Temperature Sensor Optional | (ASS000100000) |
| Stored Trends | |
| Data Stored | Battery voltage, Current, State of Charge % as well as the Aux input (Battery temperature, or midpoint deviation, or starter battery voltage). |
| Number Of Days Trends Data Is Stored | 46 |
| Free Shipping | No |
|---|
