Victron Energy MultiPlus-II 48/10000/140-100 Inverter/Charger

Description

The Victron Energy MultiPlus-II 48/10000/140-100 Inverter/Charger combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.

Monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your Multi to auto-starting a back generator and more.

The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery. The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters.

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

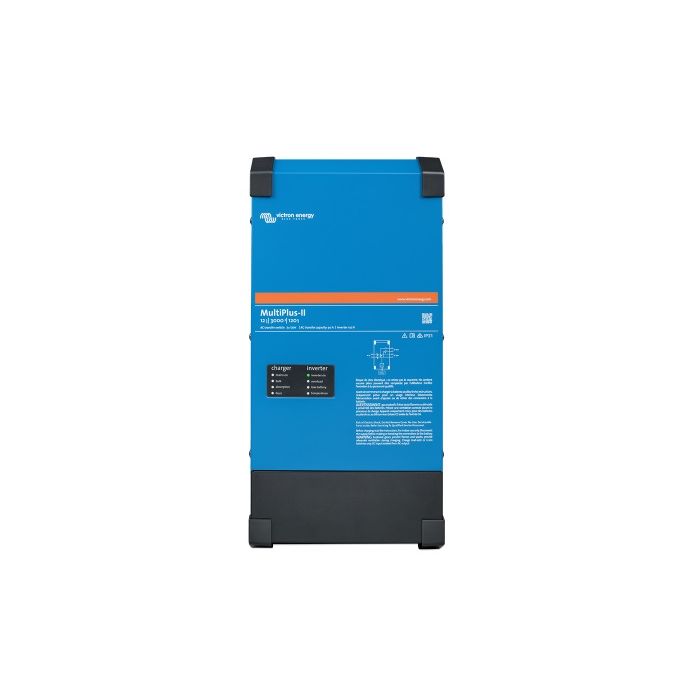

Please Note: Picture used for illustrative purposes ONLY.

Features

• A multiplus, plus ESS (energy storage system) functionality
• Power control and power assist - boosting the capacity of the grid or a generator
• Solar energy: AC power available even during a grid failure
• Two AC outputs
• Virtually unlimited power thanks to parallel and three-phase operation
• On-site system configuring, monitoring and control
• Remote configuring and monitoring

Specifications
