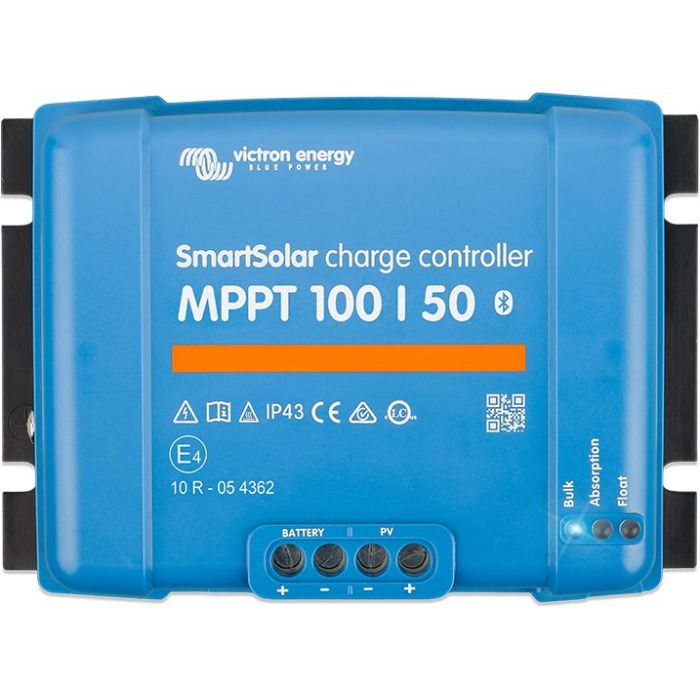

Victron Energy SmartSolar Charge Controller MPPT - 100/50
R5,999.00
SKU
5001000008
Bluetooth Smart built-in
VE.Direct
Ultrafast Maximum Power Point Tracking (MPPT)
Advanced Maximum Power Point Detection in case of partial shading conditions
Outstanding conversion efficiency
Manufacturer's Website
Description
The Victron Energy SmartSolar Charge Controller MPPT - 100/50 gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.
Features
- Bluetooth Smart built-in
- VE.Direct
- Ultrafast Maximum Power Point Tracking (MPPT)
- Advanced Maximum Power Point Detection in case of partial shading conditions
- Outstanding conversion efficiency
- Flexible charge algorithm
- Extensive electronic protection
- Internal temperature sensor
- Optional external battery voltage and temperature sensing via Bluetooth
- Fully discharged battery recovery function
Specifications
| SmartSolar Charge Controller | MPPT 100/50 |
| Battery voltage | 12/24V Auto Select |
| Rated charge current | 50A |
| Nominal PV power, 12V 1a,b) | 700W |
| Nominal PV power, 24V 1a,b) | 1400W |
| Maximum PV open circuit voltage | 100V |
| Max. PV short circuit current 2) | 60A |
| Maximum efficiency | 98% |
| Enclosure | |
| Colour | Blue (RAL 5012) |
| Power terminals | 16 mm / AWG6 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 1,3 kg |
| Dimensions | (h x w x d) 130 x 186 x 70 mm |
