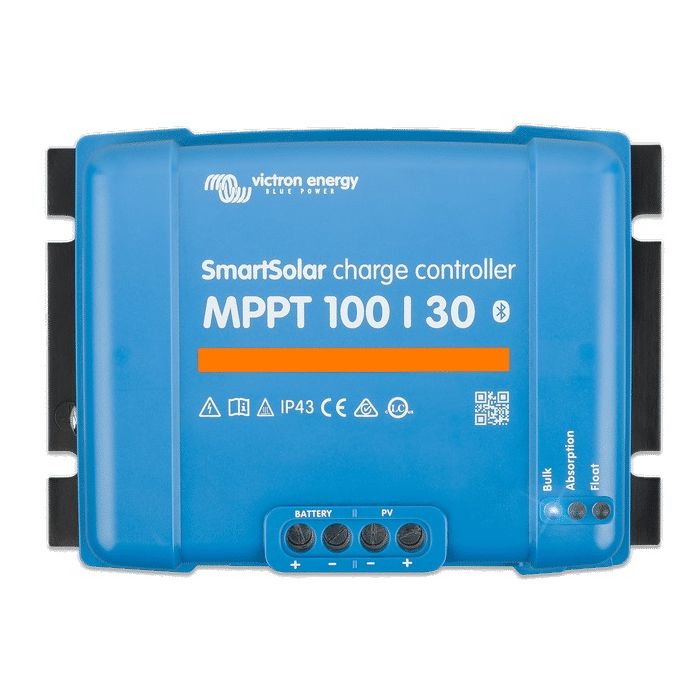

Victron Energy SmartSolar MPPT Charge Controller - 100/30
R4,199.00
SKU
5001000007
Bluetooth Smart built-in
VE.Direct
Ultrafast Maximum PowerPoint Tracking (MPPT)
Advanced Maximum PowerPoint Detection in case of partial shading conditions
Outstanding conversion efficiency
Manufacturer's Website
Description
The Victron Energy SmartSolar MPPT Charge Controller - 100/30 gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.
Features
- Bluetooth Smart built-in
- VE.Direct
- Ultrafast Maximum PowerPoint Tracking (MPPT)
- Advanced Maximum PowerPoint Detection in case of partial shading conditions
- Outstanding conversion efficiency
- Flexible charge algorithm
- Extensive electronic protection
- Internal temperature sensor
- Optional external battery voltage and temperature sensing via Bluetooth
- Fully discharged battery recovery function
Specifications
| SmartSolar Charge Controller | MPPT 100/30 |
| Battery voltage | 12/24V Auto Select |
| Rated charge current | 30A |
| Nominal PV power, 12V 1a,b) | 440W |
| Nominal PV power, 24V 1a,b) | 880W |
| Maximum PV open circuit voltage | 100V |
| Max. PV short circuit current 2) | 35A |
| Maximum efficiency | 98% |
| Enclosure | |
| Colour | Blue (RAL 5012) |
| Power terminals | 16 mm / AWG6 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 1,3 kg |
| Dimensions (h x w x d) | 130 x 186 x 70 mm |
| Free Shipping | No |
|---|
