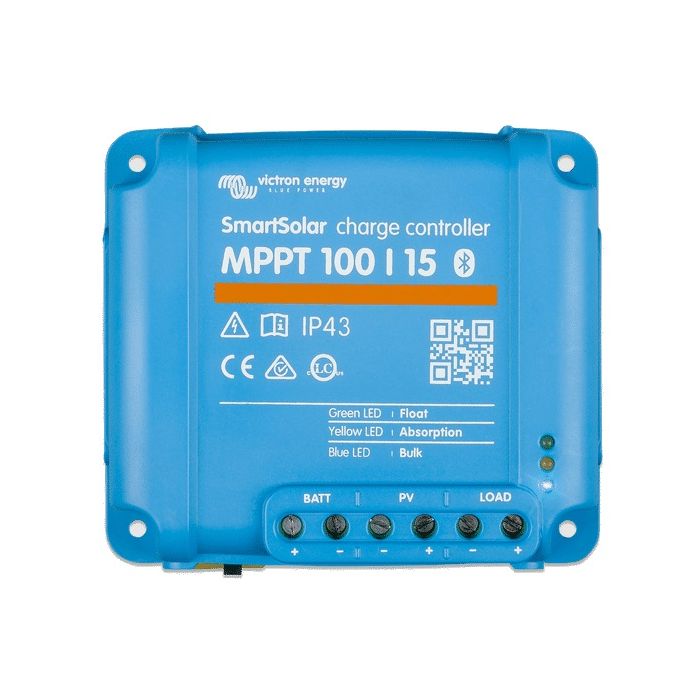

Victron Energy SmartSolar MPPT Charging Controller - 100/15
R3,629.00
SKU
5001000017
Manufacturer's Website
Description
The Victron Energy SmartSolar MPPT Charging Controller - 100/15 is intelligent, featuring a wireless solution to set up, monitor and update the controller using Apple and Android smartphones, tablets or other devices. A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
Features
- Bluetooth smart built-in: dongle not needed
- Ultra-fast maximum PowerPoint tracking (MPPT)
- Battery life: intelligent battery management
- Programmable battery charge algorithm
- Day/night timing and light dimming option
- Programming, real-time data and history display options
Specifications
| Battery Voltage | 12 / 24 Auto Select V |
| Rated Charge Current | 15 A |
| Nominal Pv Power | 220 W |
| Max Pv Short Circuit Current | 15 A |
| Automatic Load Disconnect | Yes |
| Maximum Pv Open Circuit Voltage | 75 V |
| Peak Efficiency | 98% |
| Self-Consumption | 12 V: 25 mA 24 V: 15 mA |
| Charge Voltage 'Absorption' | 14,4V / 28,8V (adjustable) |
| Charge Voltage 'Float' | 13,8V / 27,6V (adjustable) |
| Charge Algorithm | multi-stage adaptive (eight pre-programmed algorithms) |
| Temperature Compensation | -16 mV / -32 mV / C |
| Protection | Battery reverse polarity (fuse) / Output short circuit / Over temperature |
| Operating Temperature | -30 to +60 C (full rated output up to 40C) |
| Humidity | 95 %, non-condensing |
| Data Communication Port | VE.Direct |
| Enclosure | |
| Colour | Blue (RAL 5012) |
| Power Terminals | 6 mm2 / AWG10 |
| Protection Category | IP43 (electronic components), IP22 (connection area) |
| Weight | 0.6 kg |
| Dimensions | 100 x 113 x 50 mm |
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
| Free Shipping | No |
|---|
