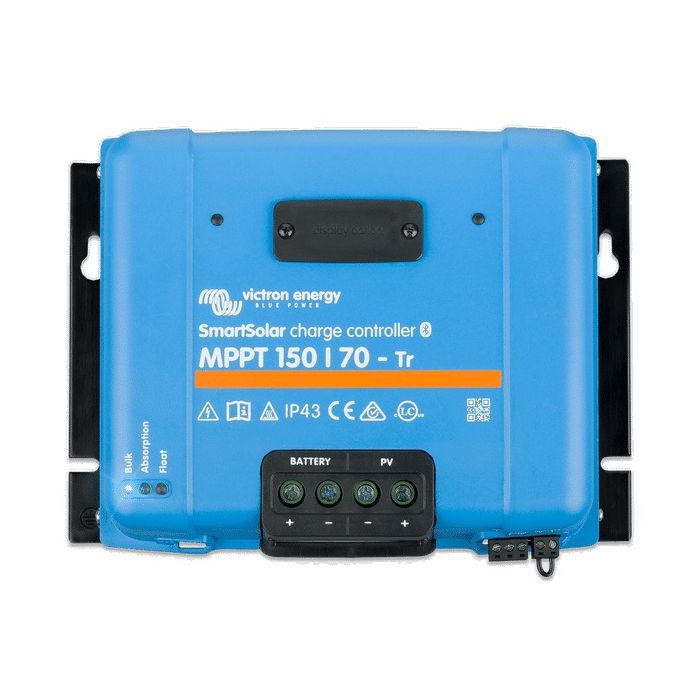

Victron Energy SmartSolar MPPT Charging Controller - 150/70-Tr
R14,949.00
SKU
5001000021
Manufacturer's Website
Description
The Victron Energy SmartSolar MPPT Charging Controller - 150/70-Tr is intelligent, featuring a wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices. A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
Features
- Bluetooth smart built-in: dongle not needed
- Ultra-fast maximum power point tracking (mppt)
- Battery life: intelligent battery management
- Programmable battery charge algorithm
- Day/night timing and light dimming option
- Programming, real-time data and history display options
Specifications
| Battery Voltage | 12 / 24 / 48V Auto Select (software tool needed to select 36V) |
| Rated Charge Current | 70A |
| Maximum Pv Power, 12V | 1000W |
| Maximum Pv Power, 24V | 2000W |
| Maximum Pv Power, 48V | 3000W |
| Max. Pv Short Circuit Current 2) | 35A (max 30A per MC4 conn.) |
| Maximum Pv Open Circuit Voltage | 250V absolute maximum coldest conditions 245V start-up and operating maximum |
| Maximum Efficiency | 99% |
| Self-Consumption | Less than 35mA @ 12V / 20mA @ 48V |
| Charge Voltage 'Absorption' | Default setting: 14,4 / 28,8 / 43,2 / 57,6V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) |
| Charge Voltage 'Float' | Default setting: 13,8 / 27,6 / 41,4 / 55,2V (adjustable: rotary switch, display, VE.Direct or Bluetooth) |
| Charge Algorithm | multi-stage adaptive |
| Temperature Compensation | -16 mV / -32 mV / -68 mV / C |
| Protection | Battery reverse polarity (fuse, not user accessible) PV reverse polarity / Output short circuit / Over temperature |
| Operating Temperature | -30 to +60C (full rated output up to 40C) |
| Humidity | 95%, non-condensing |
| Data Communication Port | VE.Direct or Bluetooth |
| Remote On/Off | Yes (2 pole connector) |
| Programmable Relay | DPST, AC rating: 240VAC / 4A DC rating: 4A up to 35VDC, 1A up to 60VDC |
| Parallel Operation | Yes (not synchronized) |
| Enclosure | |
| Colour Blue | (RAL 5012) |
| Pv Terminals | 35 mm / AWG2 (Tr models) Two sets of MC4 connectors (MC4 models 250/60 and 250/70) Three sets of MC4 connectors (MC4 models 250/85 and 250/100) |
| Battery Terminals | 35 mm / AWG2 Protection category IP43 (electronic components), IP22 (connection area) |
| Weight | 3 kg |
| Dimensions | 185 x 250 x 95 mm |
| Free Shipping | No |
|---|
