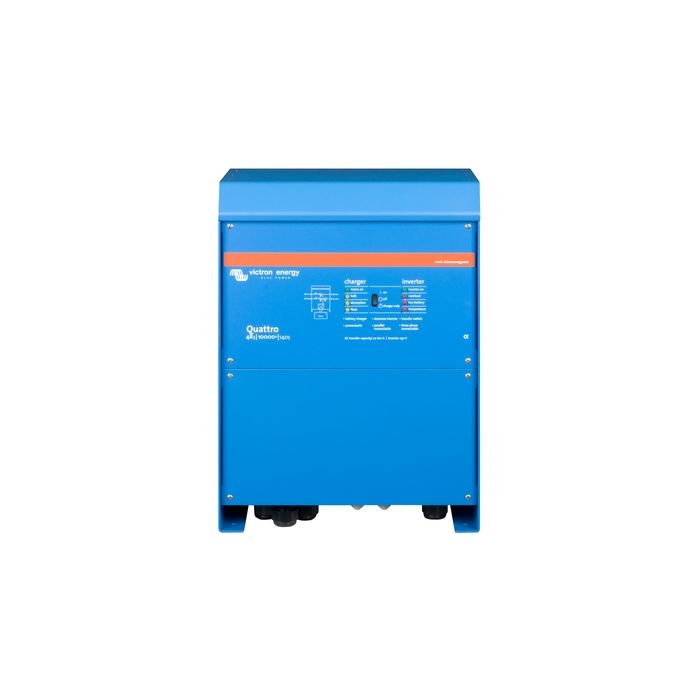

Victron Quattro Inverter And Charger - 48/10000 - 140-100/100

R61,999.00

SKU

3800700045

Two AC Inputs & two AC Outputs Unique PowerAssist feature Virtually unlimited power thanks to parallel operation Remote Monitoring and Control

Shipping restrictions apply.

Safe & Secure Shopping

Satisfaction Guaranteed

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Please Note: Victron products are, according to the Victron supplier of South Africa, only to be supplied to installers with professional Victron training. Unfortunately we are prohibited from selling Victron products to customers who do not meet these requirements. For further information please contact Victron at: [email protected]

p>Manufacturer's Website

Description

Similar to the MultiPlus, the Victron Quattro is also a combined inverter and charger. Additionally, it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.

Please Note: All Victron units are for use in photovoltaic systems only. These inverters are not 'plug and play', as you cannot plug these units directly into a standard wall socket. This unit should only be installed by professionals, please contact a registered/certified installer for help.

Features

Two AC Inputs & two AC Outputs
Unique PowerAssist feature
Virtually unlimited power thanks to parallel operation
Remote Monitoring and Control

Specifications

PowerControl / PowerAssist	Yes
Integrated Transfer switch	Yes
AC inputs (2x)	Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz Power factor: 1
Maximum feed through current	2x 100
INVERTER
Input voltage range	38 – 66V
Output	Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1%
Cont. output power at 25°C (Non-linear load, crest factor 3:1)	10000 VA
Cont. output power at 25°C	8000 W
Cont. output power at 40°C	6500 W
Cont. output power at 65°C	4500 W
Peak power	20000 W
Maximum efficiency	96%
Zero load power	55 W
Zero load power in AES mode	35 W
Zero load power in Search mode	20 W
CHARGER
Charge voltage 'absorption' (V DC)	57,6 V
Charge voltage 'float' (V DC)	55,2 V
Storage mode (V DC)	52,8 V
Charge current house battery	140 A
Charge current starter battery	4 A (12V and 24V models only)
Battery temperature sensor	Yes
GENERAL
Auxiliary output	50 A
Programmable relay	3x
Protection	a-g
VE.Bus communication port	For parallel, split phase and three phase operation, remote monitoring and system integration
General purpose com. port	2x
Remote on-off	Yes
Common Characteristics	Operating temp.: -40 to +65 ˚C Humidity (non-condensing): max. 95%
ENCLOSURE
Common Characteristics	Material & Colour: aluminium (blue RAL 5012) Protection category: IP 21
Battery-connection	Four M8 bolts (2 plus and 2 minus connections)
230 V AC-connection	Bolts M6
Weight	51 kg
Dimensions	470 x 350 x 280 mm
Safety	EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission, Immunity	EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Road vehicles	12V and 24V models: ECE R10-4
Anti-islanding	See Victron website
