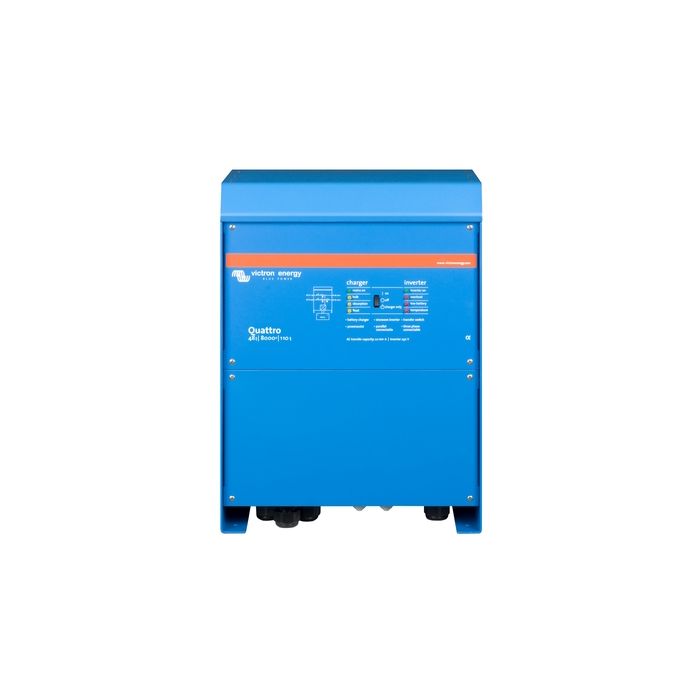

Victron Quattro Inverter And Charger - 48/8000 - 110-100/100
R60,139.00
SKU
3800700044
Two AC Inputs & two AC Outputs
Unique PowerAssist feature
Virtually unlimited power thanks to parallel operation
Remote Monitoring and Control
Shipping restrictions apply.
Please Note: Victron products are, according to the Victron supplier of South Africa, only to be supplied to installers with professional Victron training. Unfortunately we are prohibited from selling Victron products to customers who do not meet these requirements. For further information please contact Victron at: [email protected]
Description
Similar to the MultiPlus, the Victron Quattro is also a combined inverter and charger. Additionally, it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.
Please Note: All Victron units are for use in photovoltaic systems only. These inverters are not 'plug and play', as you cannot plug these units directly into a standard wall socket. This unit should only be installed by professionals, please contact a registered/certified installer for help.
Features
- Two AC Inputs & two AC Outputs
- Unique PowerAssist feature
- Virtually unlimited power thanks to parallel operation
- Remote Monitoring and Control
Specifications
| PowerControl / PowerAssist | Yes |
| Integrated Transfer switch | Yes |
| AC inputs (2x) | Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz Power factor: 1 |
| Maximum feed through current | 2x 100 |
| INVERTER | |
| Input voltage range | 9,5 – 17V 19 – 33V 38 – 66V |
| Output | Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1% |
| Cont. output power at 25°C (Non-linear load, crest factor 3:1) | 8000 VA |
| Cont. output power at 25°C | 6500 W |
| Cont. output power at 40°C | 5500 W |
| Cont. output power at 65°C | 3600 W |
| Peak power | 16000 W |
| Maximum efficiency | 96% |
| Zero load power | 50 W |
| Zero load power in AES mode | 30 W |
| Zero load power in Search mode | 20 W |
| CHARGER | |
| Charge voltage 'absorption' (V DC) | 57,6 V |
| Charge voltage 'float' (V DC) | 55,2 V |
| Storage mode (V DC) | 52,8 V |
| Charge current house battery | 110 A |
| Charge current starter battery | 4 A (12V and 24V models only) |
| Battery temperature sensor | Yes |
| GENERAL | |
| Auxiliary output | 50 A |
| Programmable relay | 3x |
| Protection | a-g |
| VE.Bus communication port | For parallel, split phase and three phase operation, remote monitoring and system integration |
| General purpose com. port | 2x |
| Remote on-off | Yes |
| Common Characteristics | Operating temp.: -40 to +65 ËšC Humidity (non-condensing): max. 95% |
| ENCLOSURE | |
| Common Characteristics | Material & Colour: aluminium (blue RAL 5012) Protection category: IP 21 |
| Battery-connection | Four M8 bolts (2 plus and 2 minus connections) |
| 230 V AC-connection | Bolts M6 |
| Weight | 41 kg |
| Dimensions | 470 x 350 x 280 mm |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1 |
| Emission, Immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
| Road vehicles | 12V and 24V models: ECE R10-4 |
| Anti-islanding | See Victron website |
