Please Note: Victron products are, according to the Victron supplier of South Africa, only to be supplied to installers with professional Victron training. Unfortunately we are prohibited from selling Victron products to customers who do not meet these requirements. For further information please contact Victron at: [email protected]

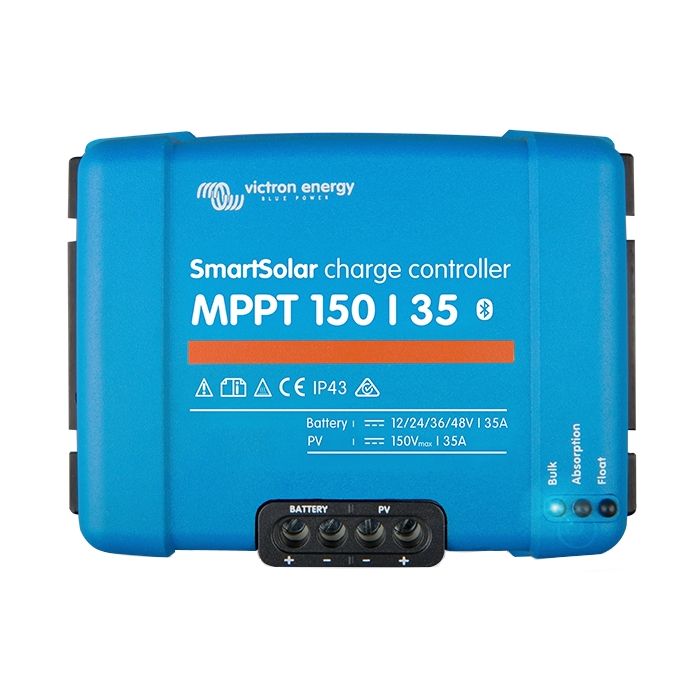

The Victron SmartSolar Charge Controller is intelligent, featuring a wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices. The SmartSolar MMPT charge controller features VE.Direct for a wired data connection to a Color Control panel, PC or other devices. Ultra-fast Maximum Power Point Tracking (MPPT) especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof. The SmartSolar is also LCD display compatible, simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display.
Please Note: LCD Display Not Included
Brand | Victron Energy |
Battery voltage | 12 / 24 / 48 V Auto Select (software tool needed to select 36 V) |
Rated charge current | 35 A |
Nominal PV power | 12V:500W / 24V:1000W / 36V:1500W / /48V:2000 W |
Max PV short circuit current | 40 A |
Maximum PV open circuit voltage | 150 V absolute maximum coldest conditions, 145 V start-up and operating conditions |
Maximum Efficiency | 98% |
Self-consumption | 12 V: 20 mA / 24 V: 15 mA / 48 V:10 mA |
Charge voltage 'absorption' | Default setting 14.4 / 28.8 / 43.2 / 57.6 V (adjustable) |
Charge voltage 'float' | Default setting: 13.8 / 27.6 / 41.4 / 55.2 V (adjustable) |
Charge algorithm | multi-stage adaptive (eight pre-programmed algorithms) |
Temperature compensation | -16 mV / -32 mV / -64 mV / °C |
Protection | Battery Reverse Polatiry (fuse, not use accessible) PV reverse polarity, Output short circuit, over-temperature |
Humidity | 95 %, non-condensing |
Data Communication port | VE.Direct |
Enclosure | |
Colour | Blue (RAL 5012) |
Power terminals | 16 mm^2 / AWG6 |
Protection category | IP43 (electronic components), IP22 (connection area) |
Weight | 1.25 kg |
Dimensions | 130 x 186 x 70 mm |
Saftey | EN/IEC 62109-1, UL 1741, CSA C22.2 |
Free Shipping | No |
---|
