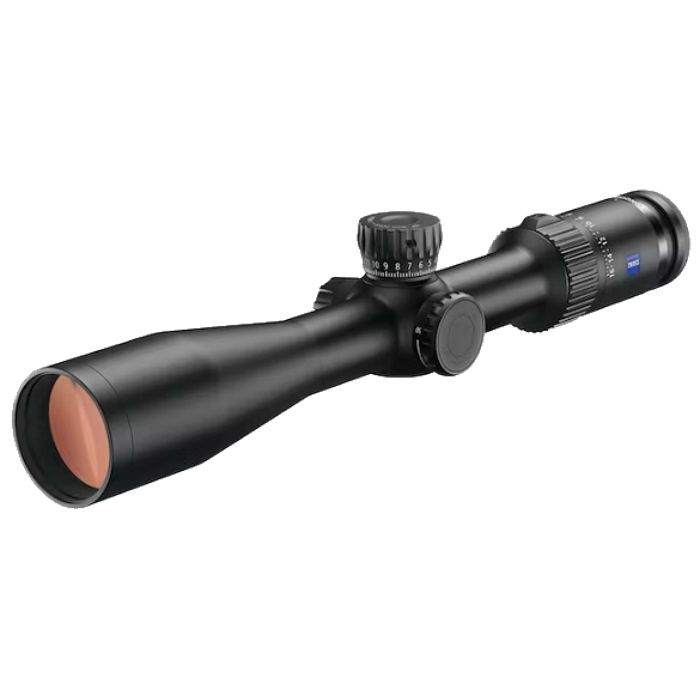

The Zeiss Conquest V4 4-16 x 50 ASV Riflescope - ZMOAi-1 Illuminated Reticle, Black of high-performance riflescopes combines the tried-and-true ZEISS optics concept with a rugged and functional design. Their compact design and perfect balance between a wide field of view and large magnification range is ideal for all types of hunting. The V4 models are equipped with a 4x zoom and functional, high-precision, and fully reliable mechanical components.
Special models have a ballistic turret with a wide reticle adjustment range (elevation and windage). As a result, the hunter has the flexibility needed for a variety of different hunting methods. Optional ballistic reticles allows the hunter to quickly make elevation and azimuth corrections with no mechanical adjustment necessary. Thanks to its compact and lightweight design, the Conquest V4 4-16x44 is ideal for active hunting and hunting in the mountains. Its zoom range makes this V4 the perfect choice for medium and long-distance shots.
The ZEISS ZMOA ballistic reticle is located in the second image plane and has a subtension of 1 MOA (ZMOA-1) between the tick marks at the respective riflescopes reference magnification. Since the tick marks are only shown along the crosshairs, the shooter maintains an excellent overview of the entire field of view.
They are suitable for both rapid bullet drop compensation and wind drift correction. The ZEISS Hunting app can be used to quickly and precisely determine both values for practically any ammunition, and also displays the distance values in a visual depiction of the reticle.
Magnification | 4 - 16x |
Effective Lens Diameter | 33.2 - 44mm |
Light Transmission | 90% |
Exit Pupil Diameter | 8.5 - 2.8 mm |
Twilight Factor | 11.5 - 26.5 |
Field Of View @ 100m (YDS) | 9.5 - 2.4 m (28 7 ft) |
Objective Viewing Angle | 5.4 - 1.4 Degrees |
Diopter Adjustment Range | + 2.0 / 3.0 dpt |
Eye Relief | 90 mm (3.54 ") |
Parallax Setting | 9.1m - Infinity (10 yds - Infinity) |
Adjustment Range @ 100m | 230 x 175 cm |
Adjustment Per Click @ 100m | 1/4 MoA (0.7 cm /100 m) |
Centre Tube Diameter | 30mm |
Eyepiece Tube Diameter | 44 mm |
Objective Tube Diameter | 50 mm |
Nitrogen Filled | Yes |
Water Resistance | 400 mbar |
Operating Temperature | 25 C - 50 C (-13 F - 122 F) |
Length | 356mm (14.0 ") |
Weight (Without Inner Rail) | 640g (22.6 oz) |
Inner Rail | No |
Colour | Black |
Ballistic Turret | Yes |
Free Shipping | No |
---|
