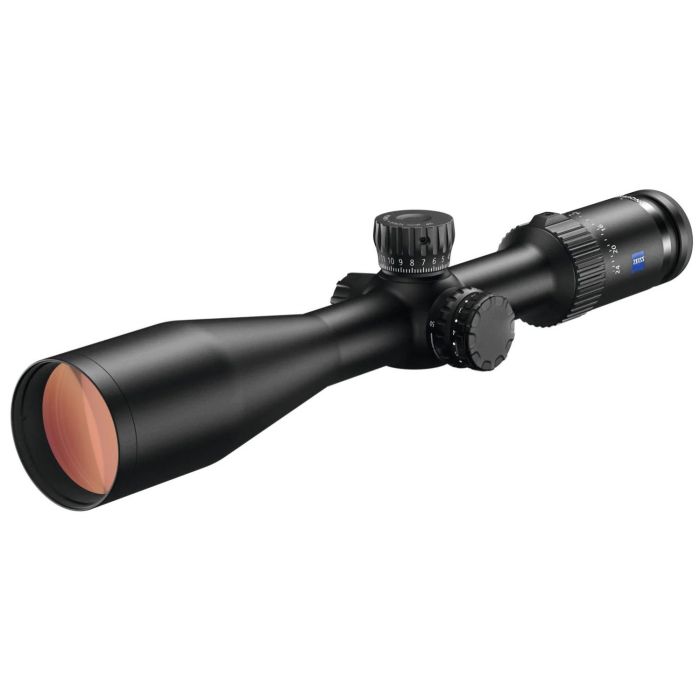

The Zeiss Conquest V4 6-24 x 50 ASV Riflescope - ZMOAi 20 Illuminated Reticle, Black is a high-performance riflescope that combines the tried-and-true ZEISS optics concept with a rugged and functional design. Zeiss compact design and perfect balance between a wide field of view and large magnification range is ideal for all types of hunting. The V4 models are equipped with a 4x zoom and functional, high-precision, and fully reliable mechanical components.
Special models have a ballistic turret with a wide reticle adjustment range (elevation and windage). As a result, the hunter has the flexibility needed for a variety of different hunting methods. Optional ballistic reticles are also available that allow the hunter to quickly make elevation and azimuth corrections with no mechanical adjustment necessary. The 24x magnification of the Conquest V4 6-24x50 and its parallax compensation make this scope perfect for precision shots at long distances.
This reticle is based on the ZMOAi-T20. However, it offers a thicker reticle line of 0.12 MOA at 24x. This makes it easier to see the crosshairs against a dark background, which is especially helpful when you are hunting against a tree line or aiming at dark game in the undergrowth.
Only the centre area of the reticle is illuminated, an extremely effective and precise aiming point in adverse lighting conditions. The ZEISS Hunting app can be used to quickly and precisely determine the change in subtension and the resulting bullet drop compensation and wind drift correction values for practically any ammunition.
Magnification | 6 - 24x |
Effective Lens Diameter | 44.9 - 50.0 mm |
Light Transmission | 90% |
Exit Pupil Diameter | 7.5 - 2.1 mm |
Twilight Factor | 16.4 - 34.6 |
Field Of View @ 100m (YDS) | 6.3 - 1.6 m (19 - 5 ft) |
Objective Viewing Angle | 3.6 - 0.9 Degrees |
Diopter Adjustment Range | + 2.0 / 3.0 dpt |
Eye Relief | 90 mm (3.54 ") |
Parallax Setting | 9.1m - Infinity (10 yds - Infinity) |
Adjustment Range @ 100m | 230 x 175 cm |
Adjustment Per Click @ 100m | 1/4 MoA (0.7 cm /100 m) |
Centre Tube Diameter | 30 mm |
Eyepiece Tube Diameter | 44 mm |
Objective Tube Diameter | 56 mm |
Nitrogen Filled | Yes |
Water Resistance | 400 mbar |
Operating Temperature | -25 C - 50 C (-13 F - 122F) |
Length | 368mm (14.5 ") |
Weight (Without Inner Rail) | 690g (24.3 oz) |
Ballistic Turret | Yes |
Colour | Black |
Reticle | ZMOAi 20 |
Illuminated Reticle | Yes |
Free Shipping | No |
---|
