Elevation travel of 140 moa
Daylight visible illuminated reticle
Highly repeatable and tactile turrets
Maximum light transmission of 90%

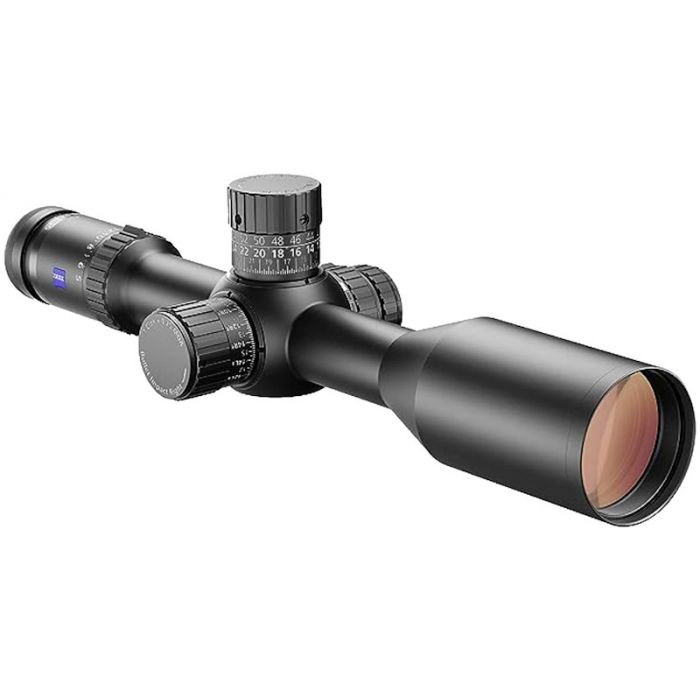

Introducing the Zeiss S5 5-25x56 Riflescope - ZF-MOAi Smart Reticle. Engineered for the serious shooter, catering to expert-level demands in PRS and NRL competitions as well as hunting engagements. This scope combines advanced optical technology with rugged construction, featuring a 34 mm main tube and a European-style fast-focus eyepiece that facilitates quick and reliable adjustments in the field. The Ballistic Stop elevation turret and external locking windage turret provide enhanced functionality and help maintain zero in adverse conditions.
Designed to deliver exceptional performance, the LRP S5 boasts a remarkable elevation travel of 140 MOA, enabling users to accurately engage targets at distances exceeding 1,500 yards. With a daylight visible illuminated reticle, the scope ensures optimal visibility during challenging lighting conditions. The smart reticle features a fine-line structure with an open centre for precision aiming, supported by a stellar illumination system.
Optics are paramount in the S5, utilizing Schott glass, fluoride lens elements, and T coatings for peak performance. With a maximum light transmission of 90%, shooters can expect bright and clear images regardless of the environment. The exit pupil diameter, ranging from 9.2 mm to 2.4 mm, along with the twilight factor of 16.7 to 37.4, enhances visibility and clarity in low-light situations.
Ergonomically designed, the scope provides a field of view at 100 yards of 22.5 to 4.5 feet, ensuring you can track moving targets easily. The first focal plane design allows the reticle to scale with magnification, maintaining accuracy at all magnification levels. The parallax setting ranges from 27 yards to infinity, accommodating various shooting distances and making it versatile in different scenarios.
This robust scope is nitrogen purged and boasts a waterproof level of 400 mbar, ensuring performance even in harsh weather. It operates efficiently within an operating temperature range of -13F to +133F, making it suitable for diverse climates. Weighing 35.6 oz. and measuring 15.6 inches in length, the Zeiss S5 is designed for optimal balance between durability and manageability. The included CR2032 battery powers the illuminated reticle, making this riflescope an essential tool for any serious marksman looking to maximize precision and performance in the field.
Magnification Minimum | 5 |
Magnification Maximum | 25 |
Objective Tube Diameter (Mm) | 62 |
Objective Lens Diameter (Mm) | 56 |
Effective Lens Diameter (Mm) | 32 - 56 |
Exit Pupil Diameter (Mm) | 9.2 - 2.4 |
Eye Relief (Mm) | 89 |
Eyepiece Tube Diameter (Mm) | 46 |
Main Tube Diameter (Mm) | 34 |
Fogproof Method | Nitrogen Purged |
Lens Coating Name | LotuTec / ZEISS T |
Lens Type | FL |
Waterproof Level | 400 mbar |
Ballistic Stop | Yes |
Click Value (Moa) | 0.25 |
Diopter Adjustment Range (Dpt) | -3 / +2 |
Elevation Adjustment Range (Moa) | 140 |
Field Of View At 100 Yds (Ft) | 22.5 - 4.5 |
Focal Plane | First Focal Plane |
Operating Temperature | -13F / +133F |
Parallax Setting (Yds) | 27 to infinity |
Elevation Turret | External |
Twilight Factor | 16.7 - 37.4 |
Windage Turret | External - Locking |
Country Of Origin | Germany |
Battery | CR2032 - Included |
Product Length (Inches) | 15.6 |
Product Weight | 35.6 oz. |
Free Shipping | No |
---|
