Extra-large eyebox
1.1 Magnification
The world's finest illuminated dot
Brilliant image quality

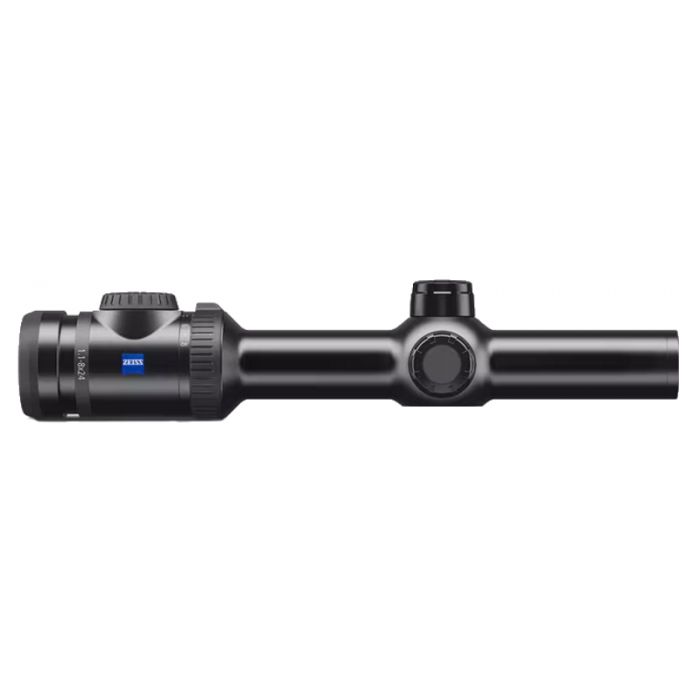

The Zeiss V8 1.1-8x24 Riflescope - 54 Illuminated Reticle, Black is equipped for everyday hunting and deliver more successful moments on the hunt than any other riflescope from ZEISS thanks to the combination of sophisticated features and their perfect interaction. Outstanding optical quality, an extra-large eye box for fast target acquisition, and the finest illuminated dot in the world make it an unsurpassed companion in any hunting situation. For greater success during your hunt.
Maximum overview and visible comfort. The eye box of the ZEISS V8 1.1-8x24 is larger than the human pupil, maximizing the area in which the hunter sees the entire image. This gives them more room to position their eye and enables them to acquire targets much more quickly, a crucial advantage during driven hunts. Together with its 1.1x magnification, this means the ZEISS V8 1.1-8x24 is ideally suited for quick shots at close range.
The driven hunt reticle 54 is another special reticle from ZEISS. This enhanced version of the reticle 0 is designed for fast and reliable shots with minimal target subtension. In addition to the fine horizontal bar, it features crosshairs containing the ultra-fine illuminated dot. The horizontal bar is used for height correction when following a target and protects against weapon tilting.
The crosshairs allow you to quickly shoulder your rifle and aim at the target, even without an illuminated dot. One look at the subtension reveals just how fine the illuminated dot is – at 12x magnification, only 0.55 cm is covered at a distance of 100 m. The reticle is located in the riflescope's second image plane.
Magnification | 1.1 8 x | |
Effective Lens Diameter | 10.6 24 mm | |
Light Transmission | 92% | |
Exit Pupil Diameter | 9.9 3.1 mm | |
Reticle | 54 | |
Twilight Factor | 3.4 13.9 | |
Field Of View @ 100m (YDS) | 39.6 5.4 m (119 16 ft) | |
Objective Viewing Angle | 22.2 Degrees 3 Degrees | |
Diopter Adjustment Range | 3.5, + 2 dpt | |
Eye Relief | 92 mm (3.6") | |
Parallax Setting | 100m (109 yds) | |
Vertical Adjustment Range @ 100m | 500cm | |
Lateral Adjustment Range @ 100m | 320cm | |
Adjustment Per Click @ 100 m | 1cm | |
Centre Tube Diameter | 30 mm | |
Eyepiece Tube Diameter | 46 mm | |
Objective Tube Diameter | 30 mm | |
Features | ||
LotuTec/Nitrogen Filled | + + | |
Water Resistance | 400 mbar | |
Physical | Operating Temperature | 25 C - + 50 C ( 13 F - +122 F) |
Length | 283 mm (11.1") | |
Weight (Without Inner Rail) | 550 g (19.4 oz) | |
Weight (With Inner Rail) | 590 g (20.8 oz) |
