35x Magnification
Advanced long-range bullet drop compensation
Brilliant image quality
The world's finest illuminated dot

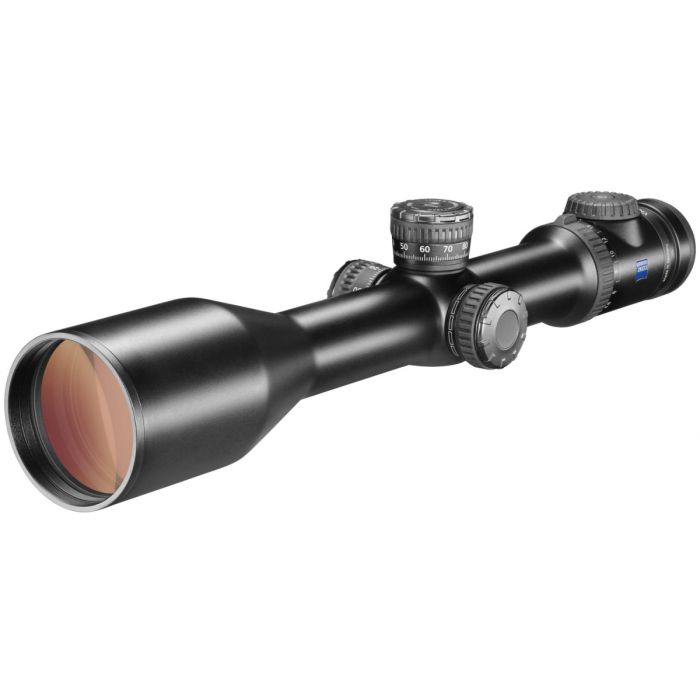

Equipped for everyday hunting, the Zeiss V8 4.8-35x60 M ASV-H Inner Rail Riflescope - 60 Illuminated Reticle, Black deliver more successful moments on the hunt than any other riflescope from ZEISS thanks to the combination of sophisticated features and their perfect interaction. Outstanding optical quality, an extra-large eye box for fast target acquisition, and the finest illuminated dot in the world make it an unsurpassed companion in any hunting situation. For greater success during your hunt.
Maximum sharpness, even at maximum magnification: thanks to the 35x magnification in combination with the optional bullet drop compensation, the ZEISS V8 4.8-35x60 offers the ultimate in long-distance shooting performance, enabling hunters to take precise shots from the greatest possible distance. For greater success when hunting at long distances.
The reticle 60 is lighter and finer than the reticle 40, which was widely used only a few years ago. The bars have only half the subtension of the earlier model, and there is twice the amount of free space between them. It is therefore ideally suited for precise shooting with the least possible coverage of the target game.
With 12x magnification and a subtension of only 0.55 cm at a distance of 100 m, you always have an excellent overview no fine details are hidden from view. The illuminated dot is extremely bright and can therefore also be used for daytime hunting. The brightness of the illuminated dot can be dimmed at extremely finely, making it ideal for night hunting as well. The reticle is located in the riflescopes second image plane.
Long distances are no longer an obstacle for you - with the unrivalled ASV Long Range Bullet Drop Compensator. A clear read-out of the shooting distance makes the ASV the most intuitive and therefore most precise long-range shooting concept on the market.
The larger adjusting range with 100 clicks allows you to keep accurate aim even at long distances, and is particularly interesting for long-range marksmen. No matter what hunting situation you find yourself in. The V8 always guarantees you absolute precision and perfection.
Magnification | 4.8 - 35x |
Effective Lens Diameter | 48.1 - 60 mm |
Light Transmission | 92% |
Exit Pupil Diameter | 9.9 - 1.7 mm |
Twilight Factor | 13.6 - 45.8 |
Field Of View @ 100m (YDS) | 8.6 - 1.2 m (26 - 4 ft) |
Objective Viewing Angle | 4.9 - 0.7 Degrees |
Diopter adjustment range | -3.5 - +2 dpt |
Eye Relief | 92 mm (3.6 ") |
Parallax Setting | 50m - Infinity (54 yds - Infinity) |
Vertical Adjustment Range @ 100m | 140cm |
Lateral Adjustment Range @ 100m | 85cm |
Adjustment Per Click @ 100m | 1 cm |
Centre Tube Diameter | 34 mm |
Eyepiece Tube Diameter | 46 mm |
Objective Tube Diameter | 67 mm |
Coating | LotuTec |
Nitrogen Filled | Yes |
Water Resistance | 400 mbar |
Operating Temperature | -25 C - +50 C (-13 F - +122 F) |
Length | 399mm (15.7 ") |
Weight (Without Inner Rail) | 995g (35.1 oz) |
Weight (With Inner Rail) | 1015 g (35.8 oz) |
Reticle | 60 |
Inner Rail | Yes |
Colour | Black |
BDC (Elevation) | Yes |
