Extra-large eyebox
1.1 Magnification
The world's finest illuminated dot
Brilliant image quality

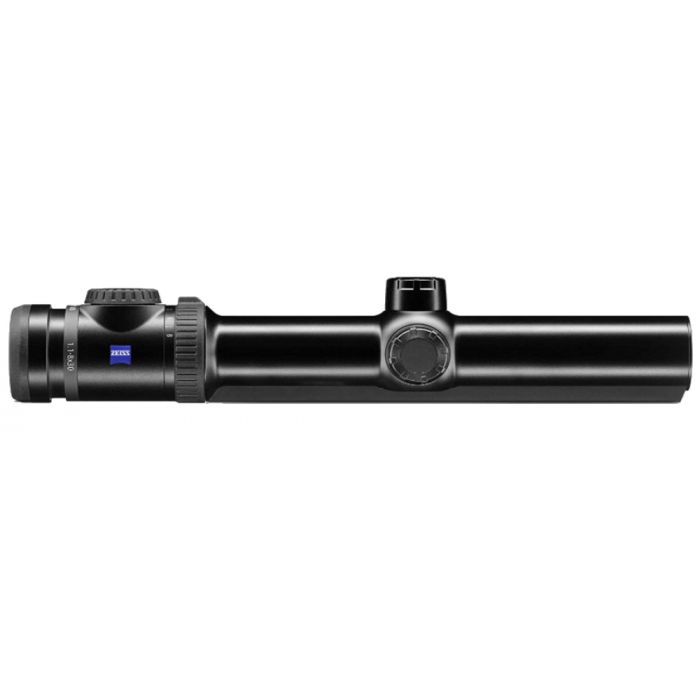

The Zeiss V8 M 1.1-8x24 Rail Mount Riflescope - 60 Illuminated Reticle, Black is equipped for everyday hunting and deliver more successful moments on the hunt than any other riflescope from ZEISS thanks to the combination of sophisticated features and their perfect interaction. Outstanding optical quality, an extra-large eye box for fast target acquisition, and the finest illuminated dot in the world make it an unsurpassed companion in any hunting situation. For greater success during your hunt.
Maximum overview and visible comfort. The eye box of the ZEISS V8 1.1-8x24 is larger than the human pupil, maximizing the area in which the hunter sees the entire image. This gives them more room to position their eye and enables them to acquire targets much more quickly, a crucial advantage during driven hunts. Together with its 1.1x magnification, this means the ZEISS V8 1.1-8x24 is ideally suited for quick shots at close range
The reticle 60 is lighter and finer than the reticle 40, which was widely used only a few years ago. The bars have only half the subtension of the earlier model, and there is twice the amount of free space between them. It is therefore ideally suited for precise shooting with the least possible coverage of the target game.
With 12x magnification and a subtension of only 0.55 cm at a distance of 100 m, you always have an excellent overview no fine details are hidden from view. The illuminated dot is extremely bright and can therefore also be used for daytime hunting. The brightness of the illuminated dot can be dimmed at extremely finely, making it ideal for night hunting as well. The reticle is located in the riflescopes second image plane.
Magnification | 1.1 8 x | |
Effective Lens Diameter | 10.6 - 24 mm | |
Light Transmission | 92% | |
Exit Pupil Diameter | 9.9 3.1 mm | |
Reticle | 60 | |
Twilight Factor | 3.4 13.9 | |
Field Of View @ 100m (YDS) | 39.6 5.4 m (119 16 ft) | |
Objective Viewing Angle | 22.2 Degrees 3 Degrees | |
Diopter Adjustment Range | 3.5, + 2 dpt | |
Eye Relief | 92 mm (3.6") | |
Parallax Setting | 100m (109 yds) | |
Vertical Adjustment Range @ 100m | 500cm | |
Lateral Adjustment Range @ 100m | 320cm | |
Adjustment Per Click @ 100 m | 1cm | |
Centre Tube Diameter | 30 mm | |
Eyepiece Tube Diameter | 46 mm | |
Objective Tube Diameter | 30 mm | |
Inner Rail | Yes | |
Coating | LotuTec | |
Nitrogen-filled | Yes | |
Water Resistance | 400 mbar | |
Physical | Operating Temperature | 25 C - + 50 C ( 13 F - +122 F) |
Length | 283 mm (11.1") | |
Weight (Without Inner Rail) | 550 g (19.4 oz) | |
Weight (With Inner Rail) | 590 g (20.8 oz) |
