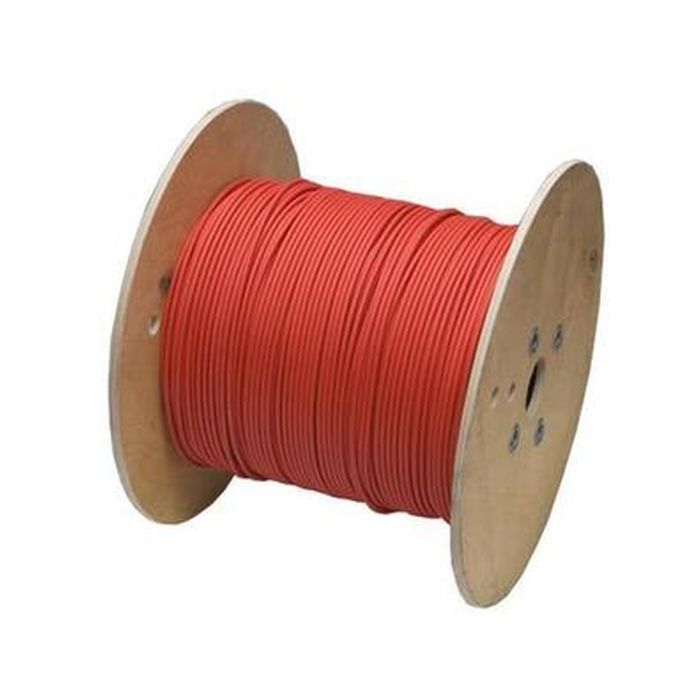

Zonn Kabel Solar Cable - 50 Pack, Red
R1,029.00
SKU
ZKEN50618RED
- Right solution to link PV arrays or to wire inverters and terminal boards
- Good resistance to UV-rays
- Wide working temperature range
- Easy to use
Shipping restrictions apply.
Description
The Zonn Kabel Solar Cable - 50 Pack, Red represents the right solution to link PV arrays or to wire inverters and terminal boards. The H1Z2Z2-K cable guarantees good resistance to UV-rays and various weather conditions. The wide working temperature range allows the use in extreme conditions, avoiding deterioration caused by heat and permitting use of the photovoltaic array in every season.
Features
- Right solution to link PV arrays or to wire inverters and terminal boards
- Good resistance to UV-rays
- Wide working temperature range
- Easy to use
- Durable
Specifications
| Conductor | Tinned copper class 5 in accordance with CEI EN 60228 |
| Insulation | Halogen-free elastomer in accordance with EN 50618 |
| Outer Sheath | Halogen-free elastomer in accordance with EN 50618 |
| Colour Of Sheath | Red |
| Min Bending Radius | Cable fix standing min. 4 x cable, move standing min. 4 x cable |
| Temperature | Working temperature: -40 C +90 C Characteristic temperature: +90 C Overload temperature: +120 C, Short circuit temperature: Max +250 C 5 sec |
| Voltage Test | 6.500V AC 15.000V DC |
| Electric resistance | Test according to EN 60228 Cl. 5, Working voltage Uo/U: Vca 1/1 kV V DC 1,5 kV (conductor-conductor and conductor-earth) |
| Colour | Red |
| Free Shipping | No |
|---|
