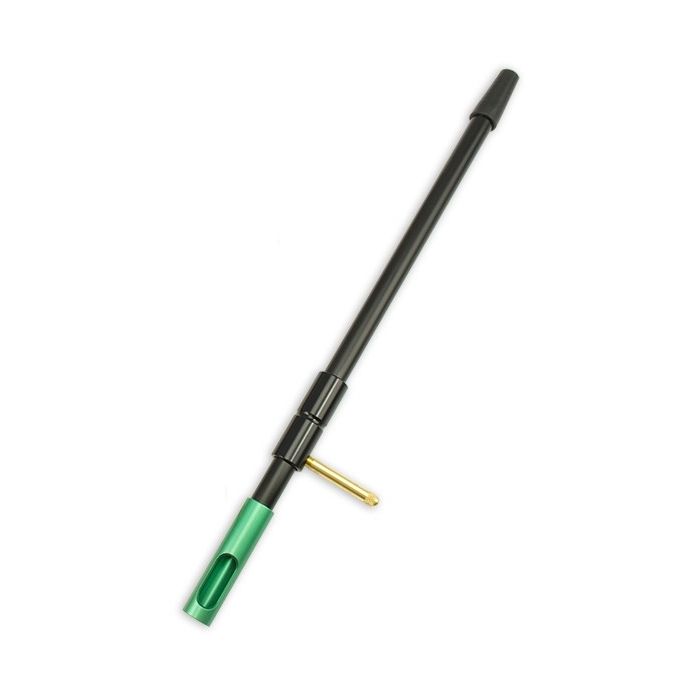

Bore Tech Bolt Action Centerfire Bore Guide - 8mm/.416 Cal, Green

Manufacturer's Website

Description

The Bore Tech Bolt Action Centerfire Bore Guide - 8mm/.416 Cal, Green is a precisely align cleaning rod with a bore. This bore guide prevents damage to your firearm and cleaning rod. The solvent resistant, moulded rubber nose-cones provide a superior seal and prevent cleaners from leaking into the chamber and action.

Bore Tech's Bore Guide features high precision CNC machine and anodized components providing a lifetime of use. The colour-coded solvent ports feature a widened opening for easy solvent application and tapered rear access for easy jag/brush alignment. Designed to fit both short and long actions, this guide features an adjustable bolt collar that firmly locks in place via the threaded brass locking handle.

The Bore Tech Centerfire Bore Guide will add approximately 13.5 inches to the length of the barrel when cleaning. Therefore, please make sure your cleaning rod is long enough to accommodate this.

Please Note: The bolt collar will fit the most popular centerfire action such as Remington, Winchester, Ruger, Browning, and Savage rifles.

Features

• Solvent resistant
• CNC machine components
• Colour coded solvent ports
• Moulded rubber nose-cones
• Fit both short and long actions
• Prevent damage to your firearm and cleaning rod

Specifications

Use Instructions

• Remove bolt as per manufacturer's instructions.
• Loosen the brass bolt collar handle and slide the rubber nose-cone (front end) of the bore guide through the receiver until seated in the chamber. *Lightly push on the bore guide to seat the rubber nose-cone in the chamber.
• Slide the bolt collar forward until the brass handle is aligned with the bolt handle recess. Rotate the brass handle down into the bolt handle recess and tighten against the bore guide tube. At this point, the guide should not move forward or backwards. Note: on rifles without a bolt handle recess, it may be necessary to remove the brass locking handle and slide the bolt collar forward until the threaded locking handle hole is visible in the ejection port. Reinsert the brass locking handle and tighten it against the bore guide tube to properly lock the bore guide into action.
• Position a dry patch of the proper size on a jag and insert the rod/jag into the rear opening of the bore guide until visible in the solvent port.
• Apply cleaner or oil to the patch and push through the bore.
• The solvent port may also be used to apply cleaner to brushes.
• To remove the bore guide from the action, loosen and rotate the brass handle up and out of the bolt handle recess. Then pull the bore guide and bolt collar back away from the chamber and out of the action.
• Note: for actions with exposed bolt releases (e.g. Winchester model 54) loosen the brass handle and leave the bolt collar in position. (the bolt collar depresses the bolt release keeping it from catching on the lip of the rubber nose cone.) while keeping the bolt collar stationary, pull the bore guide backwards until the rubber nose-cone butts up against the bolt collar. Then pull both the bolt collar and bore guide out together as one assembly.
